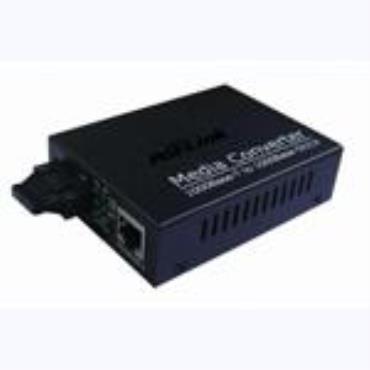

POFLINK offer gigabit Fiber Media Converter can convert Optical Electric Ethernet signals between 10/ 100/ 1000M UTP interface ( TX) and 1000M optical fiber interface ( FX) .

Main features

Auto negotiation function allows UTP ports to auto select 10/ 100/ 1000M and Full Duplex or Half Duplex.

The UTP port supports the connection of MDI/ MDI-X auto crossover.

Multimode Fiber: the max distance up to 224m/ 550m

Singlemode Fiber: the max distance up to 100km

Supporting the max 1536 byte Ethernet packet

Supporting flow control

Adopting internal power supply

Technical Specifications

Operating standards: IEEE802.3z/ AB, 1000Base-T and 1000Base-SX/ LX

MAC address table: 4K Data Buffer: 256K

Connector: UTP: RJ-45, 10/ 100/ 1000Mbps; Fiber: SC, 1000Mbps Cable :

UTP cable: Cat 5e or Cat 6 ( the max distance up to 100m)

Fiber : multimode : 50/ 125, 62.5/ 125 ( the max distance up to 550/ 224m)

singlemode : 8.3/ 125, 8.7/ 125, 9/ 125 ( the max distance up to 100km)

Flow control Full Duplex: IEEE802.3x

Half Duplex: back pressure.

Power: AC 220V( 170-260V) 50Hz; DC 5V 2A

Ambient temperature 0 ^ + 50

Storage temperature -20 ^ + 70 Humidity 5% ^ 90%

Dimensions 40 ( high) x 110 ( width) x 140 ( length) mm
