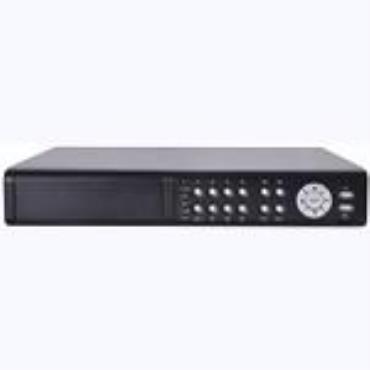

Model Type 8316

Video Compression format H.264 compression format

GUI OSD YES

Video Input(BNC) 16CH BNC input(composite video signal 1Vp-p 75Ω BNC)

Video Output(BNC) 1CH BNC output,1CH SPOT output

Audio Input/Output 16CH audio input,1CH audio output(RCA)

Maximum Recording Rate(D1/HD1/CIF)

D1:704×480 pixels with 480 IPS /704×576 pixels with 400 IPS

CIF:352×240 pixels with 480 IPS /352×288 pixels with 400 IPS

QCIF:352×240 pixels with 480 IPS /352×288 pixels with 400 IPS

Image Quality Setting Supper Best,Well,Good,Medium,Normal and Bad

HDD Storage Support two SATA HDD

Alarm Input/Output 4 alarm input,1 alarm output

Multiplex Operation Live display/record/playback/backup/network transmit

Recording Mode Manual/Timer/Motion

Playback Mode Multiple slow and rapid play speeds,manual and single-frame play modes,and support of drag the sliding bar to set(Support 16ch playback at the same time)

Backup Device USB flash disk/USB remove HDD/Network/ SATA DVD/CD-RW

Pre-alarm Recording Recording for 10 seconds before alarmin

Network Protocol TCP/IP、PPPOE 、DDNS、UPNP 、FTP and NTP

Ethernet remote view Support remote surveillance up to 10 users simultaneously

CMS software YES

Mobile phone View YES, Windows mobile;Iphone;Blackberry;Symbian;Andriod system and 3G

VGA Interface With VGA output

Log record function YES

Image Tour YES

IR Remote control&USB Mouse YES

Video Loss Detection YES

Remote Access Tools ActiveX Base Web Live&Search, CMS Access(Live/Setting/Search/Recording,ETC) & Client Software

Video Adjustable Hue /Saturation /Contrast /Brightness adjust

PTZ Control YES,built-in RS-485 port

Power Source DC 12V

Key Lock(Password Protection) YES

Power-down recovery function YES

Size(mm) 370(W) x 70(H) x 285(D) / 4pcs in a carton
