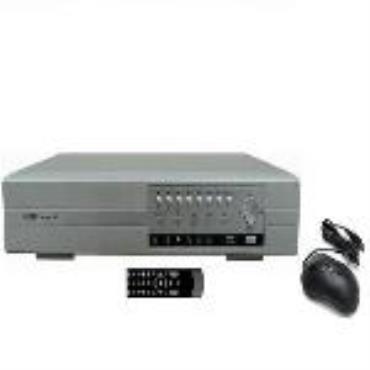

8604D

Video Compression format

H.264 compression format

GUI OSD

YES

Video Input(BNC)

4CH BNC input(composite video signal 1Vp-p 75Ω BNC)

Video Output(BNC)

1CH BNC output,1CH 1080P HDMI output,1CH 1080P VGA output

Audio Input/Output

4CH audio input,1CH audio output(RCA)

Maximum Recording Rate(1080P)

1080P:1920×1080 pixels with 240 IPS /1920×1080 pixels with 200 IPS

Image Quality Setting

Supper Best,Well,Good,Medium,Normal and Bad

HDD Storage

Support Two SATA HDD,unlimited for the capacity

Alarm Input/Output

4 alarm input,1 alarm output

Multiplex Operation

Live display/record/playback/backup/network transmit

Recording Mode

Manual/Timer/Motion

Playback Mode

Multiple slow and rapid play speeds,manual and single-frame play modes,and support of drag the sliding bar to set(Support 4ch playback at the same time)

Backup Device

USB flash disk/USB remove HDD/Network/USB DVD/CD-RW

Pre-alarm Recording

Recording for 10 seconds before alarmin

Network Protocol

TCP/IP、PPPOE 、DDNS and NTP

Ethernet remote view

Support remote surveillance up to 10 users simultaneously

CMS&SNS software

YES

Mobile phone View

YES, Window mobile;Symbian;iPhone;Android;Blackberry and 3G

VGA Interface

with VGA output

Log record function

YES

Image Tour

YES

IR Remote control&USB Mouse

YES

Video Loss Detection

YES

Remote Access Tools

ActiveX Base Web Live&Search, SNS Access(Live/Setting/Search/Recording,ETC) & Client Software

Video Adjustable

Hue /Saturation /Contrast /Brightness adjust

PTZ Control

YES,built-in RS-485 port,also with some special functions for PTZ control

Power Source

DC 12V

Key Lock(Password Protection)

YES

Power-down recovery function

YES

Size(mm)

470(W) x 72(H) x 325(D) / 4pcs in a carton
