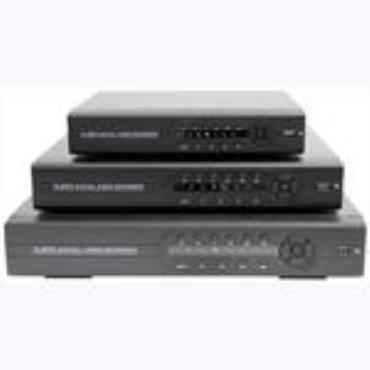

Model Type 4CH/8CH/16CH Full 960H Hybrid DVR

Video Compression format H.264 compression format

GUI OSD YES

Video Input(BNC) 4CH/8CH/16 BNC input(composite video signal 1Vp-p 75Ω BNC)

Video Output(BNC) 1CH BNC output

VGA Interface YES

HDMI Interface YES 1080P

Audio Input/Output 4CH audio input,1CH audio output(RCA)

Maximum Recording Rate(CIF/HD1/D1)

960H:960×480 pixels with 120 IPS /960×576 pixels with 100 IPS

D1:704×480 pixels with 120 IPS /704×576 pixels with 100 IPS

HD1:704×240 pixels with 120 IPS /704×288 pixels with 100 IPS

CIF:352×240 pixels with 120 IPS /352×288 pixels with 100 IPS

Image Quality Setting Supper Best,Well,Good,Medium,Normal and Bad

HDD Storage Support 1 or 2 SATA HDD,upto 2TB

Alarm Input/Output 4 alarm input,1 alarm output

Multiplex Operation Live display/record/playback/backup/network transmit

Recording Mode Manual/Timer/Motion/Alarm

Playback Mode Multiple slow and rapid play speeds,manual and single-frame play modes,and support of drag the sliding bar to set(Support 4ch playback at the same time)

Backup Device USB flash disk/USB remove HDD/Network/USB DVD/CD-RW

Pre-alarm Recording Recording for 10 seconds before alarming

Network Protocol TCP/IP、PPPOE 、DDNS、UPNP 、FTP and NTP

Ethernet remote view Support remote surveillance up to 10 users simultaneously

CMS software YES

Mobile phone View YES, Windows mobile;Iphone;Blackberry;Symbian;Andriod system and 3G

USB 3G/WIFI YES

Log record function YES

Image Tour YES

IR Remote control&USB Mouse YES

Video Loss Detection YES

Remote Access Tools ActiveX Base Web Live&Search, CMS Access(Live/Setting/Search/Recording,ETC)

Video Adjustable Hue /Saturation /Contrast /Brightness adjust

PTZ Control YES,built-in RS-485 port

Power Source DC 12V

Key Lock(Password Protection) YES

Power-down recovery function YES

Size(mm) 325(W) x 52(H) x 240(D) / 5pcs in a carton
