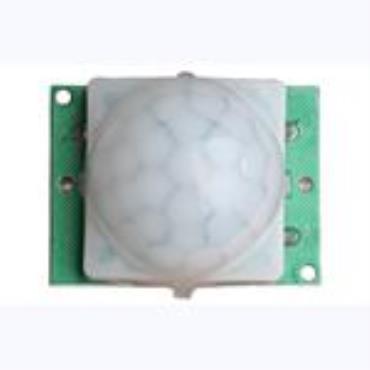

SB00622A-2 is the latest digital sensor module that based on AM622 digital sensor. It only contain a fresnel lens,PCB,and a few resistance.

Features and Electrical Specification

Compact size: 24*32 mm

Supply current: DC3V-24V

Current drain :< 0.1mA

Voltage Output: High level signal: 3V

TTL output

Delay time: 2S-70min(adjustable)

Operation Temperature: -20-60°C

Detecting length:6-8m(adjustable)

Detecting Angle:120°

Light sensor:included(3-10lux adjustable)
