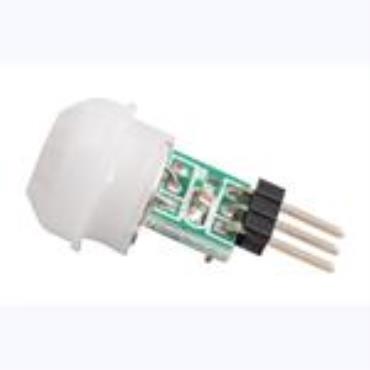

SB00322A-1 is the latest digital sensor module which developed for human body detection. A digital PIR sensorcombined with a fresnel lens is mounted on a compact size PCB, and resistance.IC is not needed any more. Digital outputimprove the performance.

Features and Electrical Specification

Compact size: 8*10 mm

Supply current: DC3V-24V

Current drain :<;;0.1mA

Voltage Output: High level signal:3V, Standby output is 0V

Delay time: 2S

Blockade time:2S

Detecting length:3-5m

Detecting Angle:110°
