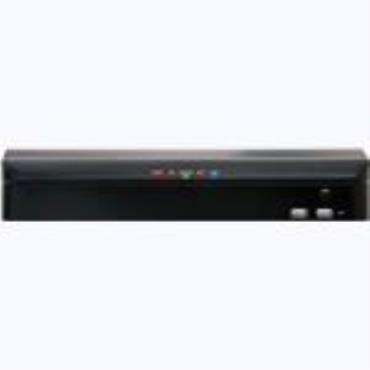

Model SVT-2008HD
Type HD-SDI Standalone DVR (Realtime)
Codec H.264 (Main Profile)
Recording Performance 1920*1080 * 15 FPS * 8 CH = 120 FPS
Playback Performance 1920*1080 * 15 FPS * 8 CH = 120 FPS
Section Hardware
Video Input Format HD-SDI 8CH
Video Input 8CH
Video Output 1 HDMI (Max. 1920 x 1080P), 1 VGA, 1 Composite
Audio Input 4 Inputs (RCA)
Audio Output 1 Output (RCA)
Audio Codec ADPCM
Ethernet 1 Port Gigabit Ethernet (RJ-45))
PTZ port 1 Port (RS-485/422 Terminal Block)
POS/ATM 3 Port
Alarm Input / Output 4 (NC/NO) / 1 (Relay)
USB Port 3 Ports ( 1 Rear / 2 Front)
Storage Up to 4 SATA HDD
Section Software
Wizard Support Wizard for Easy Setup
ANS support Auto Network Setup Support
Recording Scheduling Fully Programmable (by Weekday / by Hour / by Camera / by Continous+ Event + PreEvent)
Network Dual Stream ( User Selectable )
Recording Quality Level Best / High / Moderate / Economic
Scheduling Mode Continuous / Alarm / Motion / Panic ( Fully Programmable)
Pre-Event Up to 30 Minites
Motion Detection Region Selection (Mouse dragging support)
Playback Speed x1, x2, x4, x8, x16, x32, x64, x128
Backup Format EXE(Self Executable Format), JPEG
Backup Devices USB
GUI User Friednly Interface
Time Zone Yes
NTP Yes
DDNS Bulit-in ddns / dyndns / no-ip / zoneedit / freedns
Day Light Saving Yes
Panic Recording Yes
Multi Language 33 languages
CMS Full Featured Enterprise Edition for Windows / Mac / Linux
Mobile Viewer iPhone / Android / iPad
Operating System Embedded Linux
Section Dimension
Dimension(WxHxD) 332(mm) x 350(mm) x 60(mm)
Operating Temperature & Humidity 5°C~40°C / 41°F~104°F, 0% ~ 90%
Power Adaptor
