Support 8ch 720P/4ch 1080P playback

1CH BNC/VGA/HDMI video output， 1CH audio output

support audio intercom

VGA supports 1280*1024

support many DDNS(oray,3322,dyndns)

support mouse high speed PTZ function,convenient to PTZ controlling

support alarm, network, PTZ, mobile phone monitering (Win CE/Symbian / iPhone/Blackberry/Android)

support 4 SATA HDD，max capacity 4T,support U disk,DVD recorder,network,mobile HDD backup embedded WEB Server.

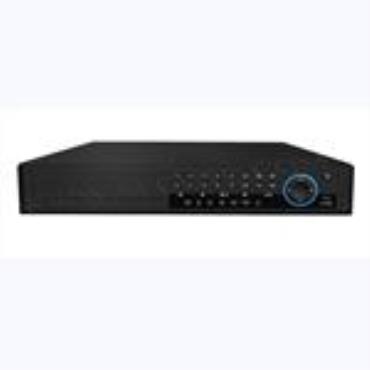

NVRH8D08

NVRH1616

NVRH3232

Operation System

Linux

Video&Audio input

IPC input

Max 8CH D1;

Or 4CH 720P;

Or 2CH 1080P.

Max 16CH D1;

Or 8CH 720P;

Or 4CH 1080P.

Max 32CH D1;

Or 16CH 720P;

Or 8CH 1080P.

Video&Audio output

CVBS output

1CH,BNC（1.0Vp-p,75ohms）

VGA output

1CH,1440×900,1280×1024,1024×768,800×600 resolution for optional

HMDI output

Optional

Standard 1.3a，support audio output together

Audio output

1CH,BNC（3.3Vp-p,4.7Kohms）

Video&Audio decode

Display resolution

D1/720P/1080P

Frame

1~25FPS(PAL); 1~30FPS(NTSC)

Streams

Multistreams/Video stream

Audio decode standard

G.711A

Double streams

Support,VGA/CIF optional

Playback

2CH 720P/1CH 1080P

4CH 720P/2CH 1080P

8CH 720P/4CH 1080P

Voice intercom

Two - way voice intercom

Other

Image capture

Supports image capture remotely and locally

HDD

SATA port

2pc

2pc

4pc

External interface

Network

1pc,RJ45 10M/100M ethernet

USB

2pcs USB2.0

Alarm input

4CH

8CH

16CH

Alarm output

1CH

2CH

4CH

RS-485

1pc

Structure

Size

1U, 315x274x45（mm）

1U, 375x321x56（mm）

1.5U, 375x368x60（mm）

Weight

(Without HDD)

1.5kg

1.5kg

2.5kg

Work environment

Power

220V±10% 50Hz

Temperature

-10°C＋55°C

Humidity

10%90%

Power Consumption

(without HDD and cameras)

10W

10W

10W
