* Adopt high performance and powerful programmable media processor, with sole chip SOC Hi3512, built-in (ARM9+DSP) and high speed video coordinative processor which is stable, reliable and with lower power consumption
* Optimized H.264 Main Profile compression algorithm, high compression ratio and high quality image; convenient to realize a transmission of HD images on a narrow band, thus it can save the storage space; support triple bit streams
* Support D1 HD encoding; compatible with Half-D1, CIF and QCIF formats
* Support multiple audio compression algorithms e.g. G.726, G.711 and ADPCM, providing clearer voice
* Support voice broadcast and dual way voice talk-back
* Support PTZ control, I/O alarm with perfect functions
* Support 802.11b/g wireless network, support 3G, CDMA and GPRS mobile networks
* Technology of self adaptability to network that it may adjust its video flame rate automatically according to the bandwidth of network
* RS485 port; built-in various high speed ball and decoder protocols; support transparent protocols
* New designs of anti static electricity and anti thunder

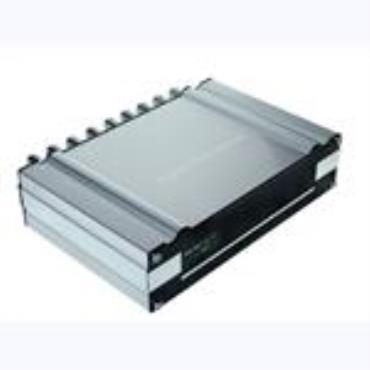

Model
SECHD104 (SECHD101,SECHC104,SEC102for optional)
Audio and video input
Video input
1,2,4 channel, BNC port (level: 1.0Vp-P, impedance: 75Ω)
Audio input
1,2,4 channel, linear
Voice talk-back input
1 channel, linear
Audio and video output
Voice talk-back output
1 channel, linear
Video loop output
None
Audio-video coding parameters
Video compress
H.264 Main Profile@Level 3.0 / MJPEG optional
Video resolution
D1/H-D1/CIF/QCIF
Video flame rate
PAL: 1-25 frames/second, NTSC: 1-30 frames/second
Video bit rate
16K-4Mbps, customized
Bit stream type
Compound streams / video stream
Audio compress
G.726, G.711 and ADPCM, optional
Audio bit rate
8-16kbps
Triple bit streams
Not support
Functions
PTZ
Support
Heartbeat mechanism
Support
IP auto pop-out
IP auto pop-out at customer end
Password protection
Support
Intellectual alarm
Mobile detection, video shielding, video loss, network breakdown, abnormality in storage
Basic functions
One-key reset, password protection, watermark technology
Storage driver
Type
Not support
Maximum memory
Not support
External port
Network port
1 pc, RJ45 10M/100Mbps self-adaptable Ethernet port
Serial port
1 pc, standard RS485 serial port
Alarm input
1 channel
Alarm output
1 channel
Wireless network
WIFI network
Support for Optional
3G network
Support for Optional
Cell phone monitor
Support for Optional
Wireless encryption protocol
Support for Optional
Misc
Power supply
DC12V/2.0A
POE power
Not support
Power consumption
≤3W
Working temp.
-10 °C ~ + 55 °C
Working humidity
10 ~ 85%
Dimension
(L) 130 * (W) 80 * (H) 45 (mm)
Weight
0.28Kg
