- Built-in GPS for location tracking

- Built-in heater.

- H.264 video compression

- Patented FS 3.0 file system for data reliability and data recovery

- Pre-recording maximum 60 minutes.

- Support 2.5” 500GB SATA HDD storage

- Built-in capacitor provides MDVR with enough time to pack the files to avoid any video files loss when the external power is cut off suddenly

- Built-in anti-vibration solution

- Low voltage protection

- Certificates: CE, FCC, ISO-7637, ISO-16750

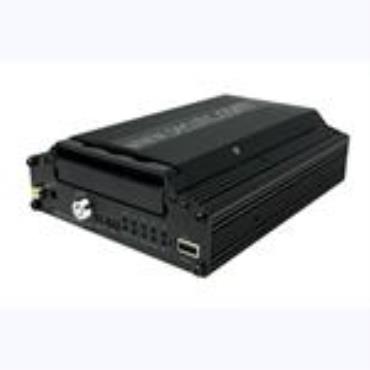

- Entry level Mobile Digital Video Recorder specially designed for mobile surveillance and event analysis. It uses a high-speed processor and embedded operating system, combined with the most advanced video compression / decompression technology (H.264) and GPS locating technology, which ensures comprehensive data collection for your vehicle travelling. It is simple but cost-effective, lightweight, and flexible to install & use. Item

Device Parameters

Description

System

CPU

Built-in Double-Core High Speed CUP

Operation Interface

OSD menu

Operation System

Real Time Built-In Linux2.6

Video/Record

Video Format

H.264（VBR）/(CBR)

Video Input

1Ch 4Ch CIF/HD1Video Input, 75Ω BNC

Video Output

1Ch Combing Video output, 75Ω BNC

Video Standard

PAL 25Fps/S, NTSC 30Fps/S

Audio

Audio Input

1Ch Audio Input 600Ω, BNC

Audio Output

1Ch Audio Output 600Ω, BNC，

Recording Method

Audio and Video Synchronizing

Alarm

Motion Detection

Support Image Mask, Image Loss, Motion Detection Alarm

Alarm Input

Along with 4~6 Level Input

Alarm Output

Can Configure 2~4 Level Output

COM Interface

Serial Interface

Support 3pcs RS232 Port, Support 2Pcs RS485 Port

Net Interface

Support RJ45 10M/100M Interface

Wireless Interface

CDMA

Option Built-In CDMA Module

EDGE

Option Built-In EDGE Module

GPRS

Optional Built-In GPRS Module

GPS

Built-In GPS Module

Storage

SATA 2.5 ” HDD

Software

PC Playback Analysis

Playback Video File and Analysis the Vehicle Data Together

RMS

Support Remote Management

CMS

Through Wireless Network View Video, GPS Upload, Alarm Upload and Commend Issue Parameter Configuration faction, etc.

Work Status

Power Input

+8V ~ +36V

Power Output

+12V@2A, +5V@2A

Power Consumption

Normal Condition Less Than 12W, Standby Less than 0.5W

Work Temperature

-20Degree ~+55Degree

Work Humidity

20%~85%
