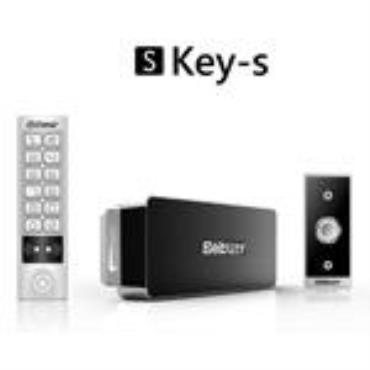

The sKey includes sKey-s and iBox, which are connected by Wiegand bus. The sKey-s realizes the card reading and keypad operation functions, and the iBox provides power supply, lock, alarm, ring bell, exit button and door status switch for the whole system.

The sKey-s supports 125KHz EM, HID cards, with 2 relays to control 2 doors and supports up to 2000 users in total, each user can possess one card and one PIN.

Besides, the sKey also supports 2 manager cards, 1 master code, 10 groups Duress Card and 1 Duress PIN, providing users with easy operations and safe guarantee.

* Digital backlit keypad, Human-Approach sensor

* Waterproof, conforms to IP68

* Built-in 125KHz card reader

* Wiegand 26~37bits output

* Split design, connection by Wiegand bus

* Guard against strong magnetic, short circuit, open circuit or other illegal ways

* Working temperature: -40° C~60°C
