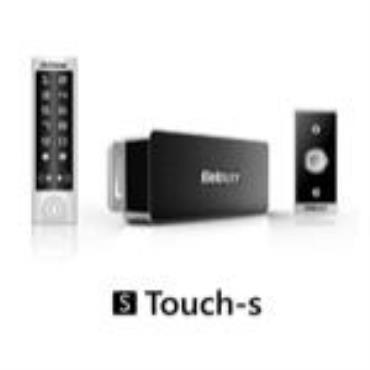

The sTouch includes sTouch-s and iBox, which are connected by Wiegand bus. The sTouch-s realizes the card reading and keypad operation functions, and the iBox provides power supply, lock, alarm, ring bell, exit button and door status switch for the whole system.

The sTouch-s supports EM, HID, Mifare or CPU cards, with 2 relays to control 2 doors and supports up to 2000 users in total, each user can possess one card and one PIN.

Besides, the sTouch also supports 2 manager cards, 1 master code, 10 groups Duress Card and 1 Duress PIN, providing users with easy operations and safe guarantee.

* Pure aluminum alloy case, anti-vandal

* Waterproof, conforms to IP68

* Built-in 125KHz or 13.56MHz card reader

* Wiegand 26~37bits output

* Split design, connection by Wiegand bus

* Digital backlit key, Human-Approach sensor

* Guard against strong magnetic, short circuit, open circuit or other illegal ways

* Working temperature: -40° C~60°C
