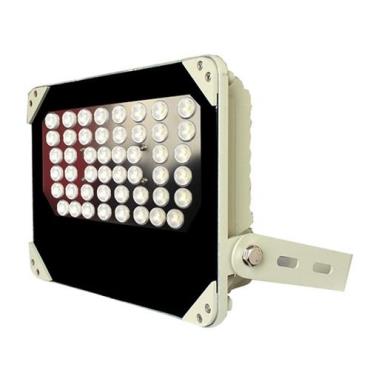

S-SG48A-W

Product Overview

Delivers high power white light for night time illumination, it’s significantly improves monitor effects of night vision camera.

Adopted with Compound-eye LED lens, the product performs more smoothly and evenly light spot radiation.

Excellent color rendering index, truly reserve object colors.

Innovating high-efficiency driver provides a zero maintenance product.

Good heat dissipation and IP66 waterproof aluminum housing ensures efficient, reliable and continuous operation of LED.

Product Features

Outstanding illumination performance. Auto day/night switch, customize to be synchronized with camera. To improve performance of night vision camera and enhance image quality. IP66 waterproof, indoor/outdoor use. Low temperature operate. Lifetime 50,000 hours. Energy saving technology. 2 year warranty.

Wide Application

Parking lot, Residence Community, Building, Road, Garden, Field

Technical Specification

LED type: 48pieces high power white light LED

Luminous flux: 5760lm

Color temperature: 5000K-6500K

Beam angle: 30 to 60°

Beam distance: 200 to 110m

Bracket: wall mount bracket

Working voltage: 85-265V AC

Power consumption: 53W

Day/night switch: automatic

Working temperatures: -30 to 50°C

Protection level: IP66

Color: beige

Panel: tempered glass panel

Housing: aluminum die-casting housing

N.W: 2.3KG

G.W: 2.6KG

Dimension: 261*202*90mm

Packing dimension: 290*220*140mm

Model for Selection

Model Beam angle Viewing distance

S-SG48A-30-A-W 30° 200m

S-SG48A-45-A-W 45° 150m

S-SG48A-60-A-W 60° 110m

*To achieve the distance needed, please pay attention to your camera specification and lens before purchase. It is normal phenomenon that distance may vary due to different cameras and lens.
