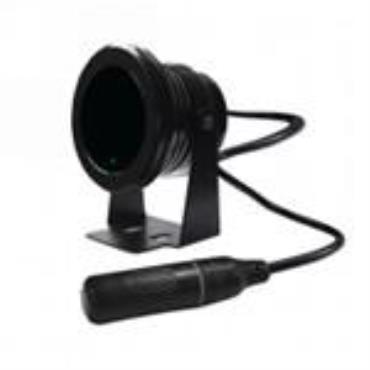

Deliver high power white light for CCTV & IP camera at night time and improve performance of camera to get clear pictures.PoE (Power over Ethernet) powered.

Product Features

• Precise secondary optical technology

The latest LED technology assures outstanding performance of LED with excellent luminous efficiency and more uniform illumination

• Independent innovation of high efficiency power drive schemes

Low failure rate of products is guaranteed because of professional in-house optimized independent circuit technology widely used in our LED illuminators for more than 5 years

• High thermal conductivity aluminum

Excellent thermal management not only reduces excess heat and brightness decay of LED but also ensures efficient, reliable and continuous operation of LED throughout its lifetime as 50,000 hours

• Energy saving technology

All illuminators has energy saving circuit with low electrical power consumption.

• Thinner and lighter design

Our patent owned housing is designed for simple installation and easy operation to reduce construction difficulty

• Warranty period

3 year warranty

Basic Function

To improve performance of the weak light camera, thereby enhancing the picture effects at night. Conventional night monitoring. The function of video analysis at night. Reduce signal noise and other image distortion. Reduce the network bandwidth requirements. Energy saving by power factor correction. Reduce the equipment cost. Lower cost of installing and wiring. Indoor and outdoor use.

Technical Specification

• LED type: 3 pieces high power IR LED

• Wavelength: 740nm/850nm/940nm

• Beam angle: 15 to 120°

• Beam distance: 60m to 8m(850nm)

• Bracket: wall mount bracket

• Voltage: PoE IEEE 802.3af

• Power: 5W

• Day/night switch: automatic

• Working temperatures: -30 to 50°C

• Protection level: IP66

• Color: Silver/Black color options

• Panel: tempered glass panel

• Housing: aluminum die-casting housing

• N.W: 0.35KG

• G.W: 0.4KG

• Packing dimension: 130*110*100mm

• Model for Selection

• Model Beam angle IR distance (850nm)

• S-SA3P-15-IR 15° 60m

• S-SA3P-30-IR 30° 40m

• S-SA3P-45-IR 45° 30m

• S-SA3P-60-IR 60° 16m

• S-SA3P-90-IR 90° 11m

• S-SA3P-120-IR 120° 8m
