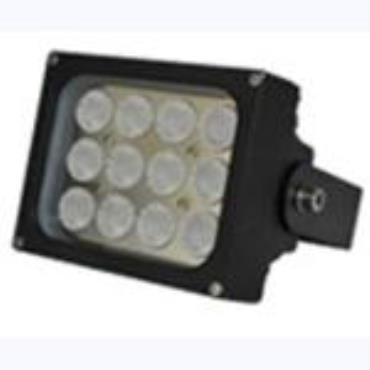

The H series of High Power White Light illumiantor is a top performance, long service life LED light source of lighting. Accurate constant current circuit drive not only develop excellent performance of LED but maintain whole product a super long life of 10 years. They''re suitable for civil, industrial and commercial surveillance/lighting.

Professional Design

Two stages of constant current circuit avoid LED away from instantly impulse impact when started. A wide edge of silica gel waterproof circle and water stop line ensure excellent waterproof performance. Twice direct cooling heat sink processing enable to increase the cooling coefficient and prolong the service life of the product. Patent design hexagonal spherical light sensor more accurately responses ambient brightness and improves accuracy of automatic light control. Flexible angle adjustable bracket can extend the illuminance range widely. IP66 waterproof and dustproof housing available work at ambient temperature -40℃ to 50℃.

Qualified Material

Super power dot-matrix white light LED with strong light effect, long service life and low light decline. High efficient twice optical lens processing achieves 90% of the luminous efficiency. The housing adopts high thermal conductivity aluminum to enhance heat dispersion property. Stainless steel bracket and screw ensure low maintenance.

Wide Range of Application

Recommended for security at ports, railway systems, border, prisons, traffic LRP/ANPR, ITS as well as large public places lighting. 50,000 hours lifetime of LED. 3/5 Years warranty.

Basic Function

To improve performance of the weak light camera, thereby enhancing the picture effects at night. Conventional night monitoring. The function of video analysis at night. Reduce signal noise and other image distortion. Reduce the network bandwidth requirements. Energy saving by power factor correction. Reduce the equipment cost. Lower cost of installing and wiring.

Technical Specification

LED type 12pcs dot-matrix white light LED

Color temperature 3000-3500K/5500-6000K

Luminous Flux 1320lm-1440lm

Voltage AC85-265V/DC12V/AC24V

Power consumption 22W

Day and night switch Auto (build in photocell)

Cable 1.3M waterproof Cable

Mounting Wall mounting “U” bracket

Temperature -40℃ to 50℃

Grade of protection IP66

Color Black

Housing Aluminium

Panel High light transmittance toughened glass

N.W 1.3KG

G.W 1.6KG

Dimension 135*110*91mm

Packing dimension 190*180*135mm

Model for selection

Model Beam angle Viewing distance

S-H121-15-W 15° 90m

S-H121-30-W 30° 80m

S-H121-45-W 45° 60m

S-H121E-60-W 60° 45m

S-H121D-75-W 75° 36m

S-H121E-90-W 90° 25m

S-H121E-120-W 120° 15m

To achieve the distance needed, please pay attention to your camera specification and lens before purchase. It is normal phenomenon that distance may vary due to different cameras and lens.
