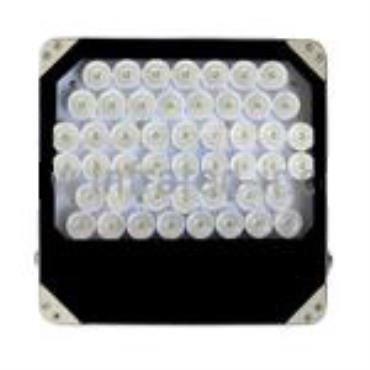

SZN-3101 Digital LED Strobe Light is a high power and smart performance digital pulse strobe light for Intelligent Traffic System applications for LPR/ANPR. It''''s suitable for traffic crossing; urban road and high way for capture number plate and speed measurement. Complied with latest professional strobe control driver, it featured as rapidly relighting, long service life, accurate control of strobe time and brightness, evenly high instantaneous power output. Through precision adjustment control software to synchronize camera and obtain clearly pictures under any kinds of environment with less influence of human eye.

Model: SZN-3101

Main Processor: High performance MCU

User Interface: RS485 via PC

LED: White light: 48pcs Osram high power white light LED IR: 48pcs Epistar high power infrared LED

Beam Angle: 15°(standard), 30°, 45° (optional)

D/N switch: Auto

Flash: Input signal trigger for snapshot.

Strobe: Input continuous TTL signal for video record.

Parameter Setting: support internal setting of flash and strobe.

Power Supply: AC110V/ AC165~220V/DC12V- IR only

Power Consumption: White Light: Average≤45W, Peak:168W

IR: Average≤40W, Peak:100W

Flash Duration Time: 1ms～5ms(Unit: ms)

Trigger Delay: 0ms～5ms(Unit: ms)

Strobe Brightness Level: 1～5

Trigger Method: electrical level, switching value, RS485 order

Protection level: IP66

Working temperature: -40～+50℃

Storage temperature: -40～+85℃

N.W: 3.75kg

Size: 261*261*90mm
