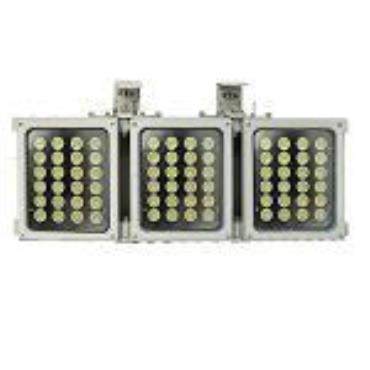

High performance white light illuminator provides high power illumination to CCTV cameras. Delicate housing and strong materials for great heat dissipation ability and zero maintenance.

Professional Design

Two stages of constant current circuit avoid LED away from instantly impulse impact when started. A wide edge of silica gel waterproof circle and water stop line ensure excellent waterproof performance.Twice direct cooling heat sink processing enable to increase the cooling coefficient and prolong the service life of the product. Patent design hexagonal spherical light sensor more accurately responses ambient brightness and improves accuracy of automatic light control. Flexible angle adjustable bracket can extend the illuminance range widely. IP66 waterproof and dustproof housing available work at ambient temperature -40℃ to 50℃.

Qualified Material

Super power dot-matrix white light LED with strong light effect, long service life and low light decline feature. High efficient twice optical lens processing achieves 90% of the luminous efficiency. The housing adopts high thermal conductivity aluminum to enhance heat dispersion property. Stainless steel bracket and screw ensure low maintenance.

Wide Range of Application

Recommended for security at ports, railway systems, border, prisons, traffic LRP/ANPR, ITS as well as large public places lighting.30,000 hours lifetime of LED.3 Years warranty.

Basic Function

To improve performance of the weak light camera, thereby enhancing the picture effects at night. Conventional night monitoring.The function of video analysis at night. Reduce signal noise and other image distortion. Reduce the network bandwidth requirements. Energy saving by power factor correction. Reduce the equipment cost. Lower cost of installing and wiring.

Technical Specification

LED type: 72pcs 3W dot-matrix white light LED

Color temperature: 3000-3500K/6000-6500K

Luminous Flux 12960lm

Voltage AC110V/AC165-265V/DC12V/AC24V

Power consumption 162W

Day and night switch Auto (build in photocell)

\Mounting Wall mounting “U” bracket

Temperature -40℃ to 50℃

Grade of protection IP66

Color Beige

Housing Aluminium

Panel High light transmittance toughened glass

N.W 12KG

G.W 13KG

Dimension 210*615*120mm

Packing Dimension 720*400*220mm

Model for selection

Model Beam angle Viewing distance

S243D-15-W 15° - 45° 450m-280m

S243D-30-W 30° - 90° 380m-240m

S243D-45-W 45° - 135° 320m-190m

S243D-60-W 60° - 180° 260m-160m

S243D-90-W 90° - 200° 200m- 140m

S243D-120-W 120°-230° 140m-100m

To achieve the distance needed, please pay attention to your camera specification and lens before purchase. It is normal phenomenon that distance may vary due to different cameras and lens.
