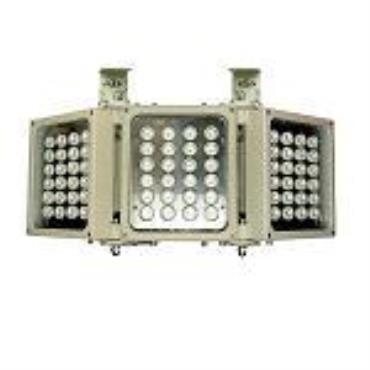

S243D-IR deliver high power infrared light for CCTV & IP camera at night time and improve performance of camera to get clear pictures. 30,000 hours lifetime of LED. 3 years warranty.

Professional Design

Two stages of constant current circuit avoid LED away from instantly impulse impact when started. Low failure rate of products is guaranteed by the professional in-house optimized independent circuit technology, which has been widely used in our LED illuminators for more than 5 years. Wide edge of silica gel circle and water stop line ensure IP66 waterproof and dustproof level. Twice direct cooling heat sink processing enable to increase the cooling coefficient and prolong the service life of the product. Patent design hexagonal spherical light sensor more accurately responses ambient brightness and improves accuracy of automatic light control. Flexible angle adjustable bracket can extend the illuminance range widely. Robust cooling fin design is available the illuminator working at -40℃ to 50℃. Super energy saving circuit with low electrical power consumption.

Qualified Material

Super power dot-matrix IR LED with strong light effect, long service life and low light decline feature. High efficient twice optical lens processing achieves 90% of the luminous efficiency. The housing adopts high thermal conductivity aluminum to enhance heat dispersion property. Stainless steel bracket and screw ensure low maintenance.

Wide Range of Application

Recommended for security at ports, railway systems, border, prisons, traffic LRP/ANPR, ITS as well as large public places surveillance.

TECHNICAL SPECIFICATION

LED type: 72pcs 2W dot-matrix IR LED

Wavelength: 740nm/850nm/940nm

Voltage: AC85-265V/DC12V/AC24V

Power consumption: total 162W

Day and night switch: Auto

Cable length: 1.3meter(standard)

Mounting: Wall mounting “U” bracket

Temperature: -40℃ to 50℃

Grade of protection: IP66

Color: Beige

Housing: Aluminum

Panel: High light transmittance toughened glass

Net weight: 12kg

Gross weight: 13kg

Dimension: 610*206*117mm

Packing dimension: 720*400*220mm

Model Beam Angle IR distance(850nm)

S243D-15-IR 15°-45° 540m-290m

S243D-30-IR 30°-90° 400m-220m

S243D-45-IR 45°-150° 240m-140m

S243D-60-IR 60°-180° 150m-115m

S243D-90-IR 90°-200° 135m-100m

S243D-120-IR 120°-230° 120m-85m

IR distance is tested by Watec/WAT-902H 1/3" CCD Camera. To achieve the distance needed, please pay attention to your camera specification and lens before purchase. It is normal phenomenon that distance may vary due to different cameras and lens.
