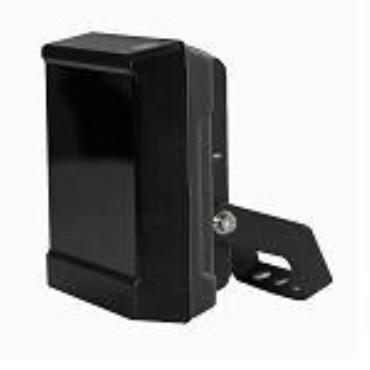

Deliver high power infrared light for CCTV & IP camera at night time and improve performance of camera to get clear pictures.

Product Features

Precise secondary optical technology. The latest LED technology assures outstanding performance of LED with excellent luminous efficiency and more uniform illumination.Independent innovation of high efficiency power drive schemes.Low failure rate of products is guaranteed because of professional in-house optimized independent circuit technology widely used in our LED illuminators for more than 5 years.High thermal conductivity aluminum.Excellent thermal management not only reduces excess heat and brightness decay of LED but also ensures efficient, reliable and continuous operation of LED throughout its lifetime as 50,000 hours.Manual adjustable photocell and brightness.Easily set the time of Turn-on illuminator to meet any environmental brightness requirement and dim the brightness of illuminator to suitable light effect.Vandal resistant.Vandal resistant panel protects against hammer, stone and continuous thumping in a certain range.Energy saving technology.All illuminators has energy saving circuit with low electrical power consumption. Thinner and lighter design.Our patent owned housing is designed for simple installation and easy operation to reduce construction difficulty.Warranty period:3 year warranty

Basic Function

To improve performance of the weak light camera, thereby enhancing the picture effects at night. Conventional night monitoring. The function of video analysis at night. Reduce signal noise and other image distortion. Reduce the network bandwidth requirements. Energy saving by power factor correction. Lower cost of installing and wiring. Indoor and outdoor use.

Technical Specification

LED type: 6 pieces high power IR LED

Wavelength: 740nm/850nm/940nm

Beam angle: 15 to 120°

Beam distance: 120m to 20m

Bracket: wall mount bracket

Working voltage: DC12V

Current: 800mA (adjustable)

Day/night switch: automatic

Working temperatures: -30 to 50°C

Protection level: IP66

Color: black

Panel: Vandal proof PC panel

Housing: aluminum die-casting housing

N.W.: 0.53KG

G.W.:0.8KG

Packing dimension: 145*135*95mm

Model for Selection

Model Beam angle IR Distance(850nm)

SG6-15-C-IR 15° 80m

SG6-30-C-IR 30° 60m

SG6-45-C-IR 45° 40m

SG6-60-C-IR 60° 22m

SG6-90-C-IR 90° 16m

SG6-120-C-IR 120° 12m

To achieve the distance needed, please pay attention to your camera specification and lens before purchase. It is normal phenomenon that distance may vary due to different cameras and lens.
