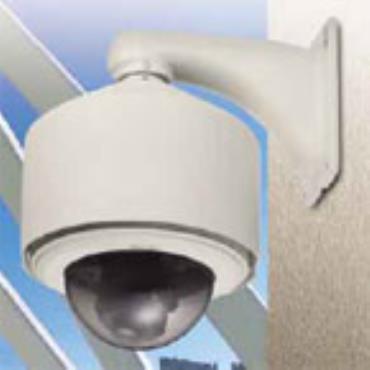

VCC-9100P/VCC-9000P series is equipped with a built-in auto-focus zoom lens, combined with digital imaging achieved by Sanyo's digital signal processing (DSP) system for over 520 TV lines of horizontal resolution. The 22x optical zoom and the 16x digital zoom can be combined for close-ups at a magnification power of 352x. While offering minimum illumination of 1.2 lux (VCC-9100P) or 2.0 lux (VCC-9000P), camera sensitivity can be further enhanced via an up to 32x electronic sensitivity boost.

The VCC-9100P/VCC-9000P series offers a host of options as solutions for system integration in response to different needs and environments where surveillances are required. Up to 80 preset positions can be registered, 4 sequential monitoring patterns, each consisting of up to 36 preset positions, can be stored and recalled. Providing endless panning over 360?in the horizontal plane and 180?tilt in the vertical, the camera can move at variable speeds (0.5?to 140?per second for horizontal and vertical plans. Its built-in electronic shutter enables eight high-speed shutter settings from 1/50 sec. to 1/10,000 sec. in addition to five low-speed settings from 2x to 32x.

The series can be set up on-screen and operated using a controller with Sanyo's Security Serial Protocol (SSP).
