Intelligent transportation management;

Asset identification, tracking and checking management;

Orientation, tracking and checking people in coal mine etc.;

Position monitor management for baby, prisoner, older psychotic etc..

Technology specifications

Operating frequency 2.4GHz~2.5GHz ISM

Antenna Connect 1 antenna through SMA

RF power range -30dBm~0.0dBm( adjusted by 32 grade )

Receiving sensitivity -90.0dBm

Operating mode Fixed frequency

Modulation GFSK

Reading range ☆ 0~100m (depend on different gain omni-directional antenna,)

☆

RSSI active reader can be adjusted less than 10m

Anti-collision Up to 1000 tags read simultaneously

Communication speed 250kbps, 1Mbps, 2Mbps(adjustable)

Communication interface RS-232, RS-485, Wiegand26/34/42/50, Ethernet

Input and output 2 input, 2 output

Power supply AC input: 100~240V, 50/60Hz 1.2A

DC output: 5V/1A

Product size 208mm×125mm×35mm(L×W×H)

Gross weight 0.79kg

Net weight 0.75kg

Working temperature -20℃~+70℃

Storage temperature -40℃~+85℃

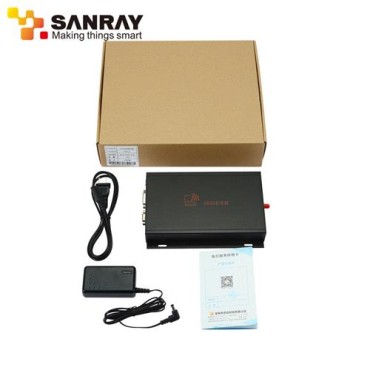

Accessories Standard matched antenna, Power adapter, Power cable, RS-232 cable, USB cable, Ethernet cable

Working status indication Buzzer, LED indicator
