*1/3" SONY SS3 high resolution 540TVL

*Excellent Ultra WDR Performance

*Minimal blooming and vertical smearless,under the strong backlight

*OSD setup

*Digital Noise Reduction(DNR)

*Color/B/W switch

*Natural color reproduction and excellent image quality

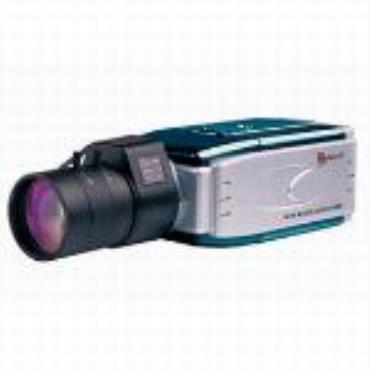

Model : SB-304N

Image Sensor 1/3" SONY SS3

Effective Pixels PAL:729( Horizontal)*698( Vertical)

NTSC:768( Horizontal)*494( Vertical)

Resolution Horizontal:540 TV Line

Vertical :460TVL

Signal System PAL/NTSC

S/N Ratio More than 50dB

Wide Dynamic 4 modes (elaborate on page 8)

White Balance AUTO / PUSH / MANU / INDR / FLUO / OUTD

Control OSD menu

Minimum Illumination 0.6 Lux / F1.2;

0.08Lux / F1.2 Slow Shutter mode

Anti-color rolling on/off

Zoom Speed 1X-2.56X

Video Output 1.0-1.2vp(Composite Video Output ),75Ohm Terminated

Auto Iris Lens DC /Video Selectable

Lens Mount C/CS Mount

Motion Detect on/off

Power Requirement 12V DC /24V AC

Power Consumption 2.5W/3.6W

Dimensions(mm): 128*52*63mm
