●42PCS ￠5 IR LED

●0Lux (when IR LED on)

●4-9mm varifocal lens,lens adjustable from outside

●30-35M IR Distance

●Waterproof IP66, outdoor installation

●Dual glass, no IR diffusion and fog

●Unique Case

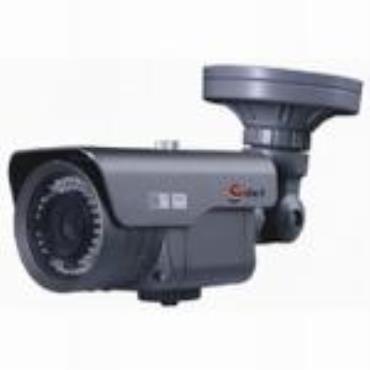

Model: SB-811B

Image Sensor: 1/3"SONY Super HAD CCD

Pixel: PAL:512(H)x582(v)

NTSC:512(H)x492(v)

Signal System: PAL/NTSC

Horizontal Resolution: 420 TVL

Lens: 4-9mm Manual focus auto iris lens

S/N Ratio: >48dB

Minimum Illumination: 0 Lux (Infrared Light Open)

Shutter speed: 1/50(1/60)—1/100,000(Sec.)

White Balance: Auto Tracking White Balance

Video Output: 1Vp-p,75ohm,BNC

Power: DC 12V(When Infrared Light opening, the maximum current is 1A )

Current: 280mA

Infrared wave length: 850nm

Infrared distance: 30-35m

Infrared Light: 42Pellet ф5mm Infrared Light

Operating Temperature: -10℃ ~ +50℃
