●24PCS ￠5 IR LED

●0Lux

●3.6mm/6mm/8mm lens

●25-30M IR Distance

●Waterproof IP66

●Dual Glass

●Unique Case

SPECIFICATIONS

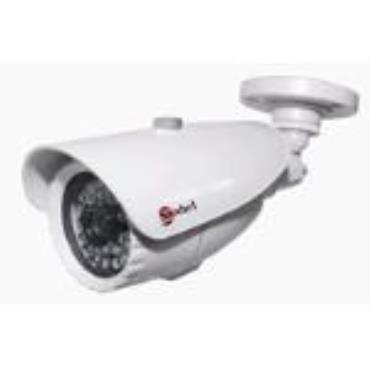

Model: SB-810B

Image Sensor: 1/3"SONY Super HAD CCD

Pixel: PAL:512(H)x582(v)

NTSC:512(H)x492(v)

Signal System: PAL/NTSC

Horizontal Resolution: 420 TVL

Lens: 3.6mm, 6mm, 8mm Zoom lens

S/N Ratio: >48dB

Minimum Illumination: 0 Lux (Infrared Light Open)

Shutter speed: 1/50(1/60)—1/100,000(Sec.)

White Balance: Auto Tracking White Balance

Video Output: 1Vp-p,75ohm,BNC

Power: DC 12V(When Infrared Light opening, the maximum current is 1A )

Current: 280mA

Infrared wave length: 850nm

Infrared distance: 25-30m

Infrared Light: 24Pellet ф5mm Infrared Light

Size: ф51 x 60mm

Weight: 0.4kg

Operating Temperature: -10℃ ~ +50℃

Package: 12kgs/20PCs, 59*43*24CM
