●36PCS ￠8 IR LED

●0Lux

●4-9mm/2.8-11mm/6-15mm varifocal lens

●45-50M IR Distance

●Waterproof IP66

●Dual Glass, No infrared proliferation and haze

●NTSC/PAL System

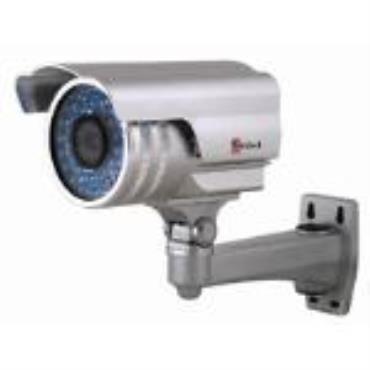

Model: SB-806F

Image Sensor: 1/3"SONY Super HAD CCD

Pixel: PAL:752(H)x582(v)

NTSC:768(H)x494(v)

Signal System: PAL/NTSC

Horizontal Resolution: 550TVL

Lens: 4-9mm Zoom lens

S/N Ratio: >48dB

Minimum Illumination: 0 Lux (Infrared Light Open)

Shutter speed: 1/50(1/60)—1/100,000(Sec.)

White Balance: Auto Tracking White Balance

Video Output: 1Vp-p,75ohm,BNC

Power: DC 12V(When Infrared Light opening, the maximum current is 1A )

Current: 380mA

Infrared wave length: 850nm

Infrared distance: 45-50m

Infrared Light: 36Pellet ф8mm Infrared Light

Size: 150x100x95mm

Weight: 1.6kg

Operating Temperature: -10℃ ~ +50℃

Package: 17.5kgs/10PCs, 65*24*29CM
