Power: Two-Lithium Battery Design.

Applied as ID badges.

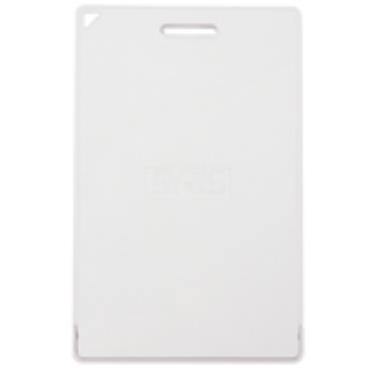

Compact-size card is the same size as credit card.

Transmitting signals to security terminals via the push button of the card.

SPEC.

>>System SPEC.

communication 2.45GHz Support read and write

Frenquency 2.40~2.48GHz (option 125KHz or 13.56MHz)

Channel 255

Address 65536

RSSI 0-255

ID 64 bit

Program Set parameter

LED Tag action or R/W status

Memory 4K bytes ~32K bytes (option)

Wake on radio ON/OFF

Switch Can be set Tag active or Tag ON/OFF, or call key

>>Power Require

Battery 3 VDC CR2032 x1 or x2

Battery life 1 year ~ 10 year

Action Current 24mA@3 VDC

>>Others

Operating -10 oC to 55 oC, 5 to 95%RH

Storage -20 oC to 65 oC, 5 to 95%RH

Dimensions 86W x 54H x 6D (mm)
