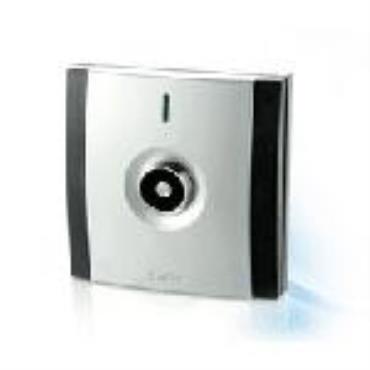

SALTO XS4 Wall Reader
SALTO XS4 Wall Reader
SALTO Systems
Region: Spain
Update: 2013/07/24
INQUIRY
Key Specifications

SALTO offers a wide range of wall readers that in combination with SALTO Door Controllers enable the expansion of SALTO access control benefits to all those doors where a stand alone electronic lock cannot be fitted i.e. barriers, elevators, mechanical doors etc, or where control must be boosted by on-line real time access control. The wall readers read encrypted data contained on the carrier and communicate it to the door controller. They also allow for updating of the carrier via SALTO Virtual Network technology making it possible to cancel lost or stolen cards remotely. Suitable for outdoor installation, the SALTO wall reader range also includes narrow profile wall readers that can be installed in the frame of a door.

* ID technologies available: i-Button, DESfire, DESfire EV1, Mifare, Mifare plus, Vicinity, Inside Picopass, Legic, HID iCLASS, SKIDATA.
* Off-line or On-line depending on the door controller connected.
* Virtual Network capability through SALTO Virtual Network Technology.
* User on card audit trailing capability for audit trailing via the SALTO Virtual Network (SVN).
* Contactless versions compatible with ISO 14.443A, ISO 14.443B and ISO 15.693 (Vicinity) and covering a wide range of mainstream RFID brands such as DESfire, DESfire EV1, Mifare, Mifare plus, Legic, HID iClass, Inside Picopass and SKIDATA allowing multiaplication with third party systems using one card.
* SALTO 9000 contactless range is compatible with NFC (Near Field Communication) technology which allows NFC enabled cell phones to act as contactless data carriers to open and control SALTO access controlled doors.
* All communications between the carrier and the electronic lock are encrypted and secured.
* Can be flush or surface mounted depending on the base (available separately)*.
* Available in a narrow profile version for special doors.
* Red and green coloured LED to indicate lock authorization.
* Blue coloured LED to indicate carrier updating.
* For external use and protection against vandalism it can be used with the WRMFWAV frame and flush mounting base.
* Can be combined with Personal Identification Number (PIN) code pad for card authentication*.
* Compatible with standard electrical back boxes for easy fitting.
* Can be used for integration with other systems through the addition of the Wall Reader Adaptor or Control Unit Adaptor.
