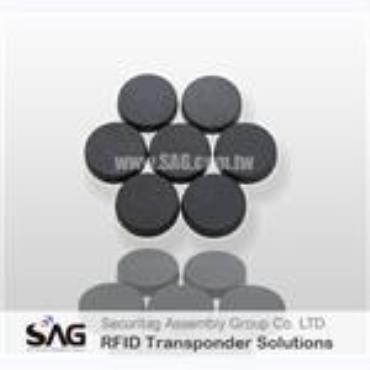

SAG Laundry Tags are designed for applications that require a rugged RFID transponder that can withstand harsh environments. These Laundry Tags basically meet all requirements in terms of heat, pressure and chemical resistance in the applications of contactless tracking of garments in the textile rental and dry cleaning.
====================================================
Available Technologies:
====================================================
EM4100, EM4102, EM4105, EM4450, EM4135, T5557, T5551, ATA5567, HITAG 1, HITAG 2, HITAG S256, HITAG S2048, MIFARE S50 (1K), MIFARE S70 (4K), MIFARE Ultralight, MIFARE DESFire V0.6, I. CODE SLI, MIFARE 1K compatible (SLE 66R35), FeliCa RCS919, SR176, SRF 55V02S, SRF 55V10S, SRIX4K, LRI64, LRI2K, Tag-it Plus(2048), Tag-it Pro(256), Tag-it Standard(256), GK4001, LEGIC MIM256, LEGIC MIM1024, LEGIC Supertag... etc.
====================================================
(((((((((( 14mm Laundry Tag ))))))))))
1) Diameter: 14 mm
2) Thickness: 3.2 mm
3) Operating Frequency: 125 KHz & 13.56 MHz
4) Reading Range: Depending on the reader design
5) Operating Temperature: -20 to 85 in Celsius
6) Storage Temperature:
-20 to 110 in Celsius for 500Hours
+120 in Celsius for 100Hours
+140 in Celsius for 5Hours
7) Material: PBT
8) Standard Color: Black
(((((((((( 17mm Laundry Tag ))))))))))
1) Diameter: 17 mm
2) Thickness: 3.0 mm
3) Operating Frequency: 125 KHz & 13.56 MHz
4) Reading Range: Depending on the reader design
5) Operating Temperature: -25 to 85 in Celsius
6) Storage Temperature:
-20 to 130 in Celsius for 500Hours
+140 in Celsius for 100Hours
+160 in Celsius for 5Hours
7) Material: Nylon+GF
8) Standard Color: Black
(((((((((( 22mm Laundry Tag ))))))))))
1) Diameter: 22 mm
2) Thickness: 3.5 mm
3) Operating Frequency: 125 KHz & 13.56 MHz
4) Reading Range: Depending on the reader design
5) Operating Temperature: -25 to + 85 in Celsius
6) Storage Temperature:
-25 to 140 in Celsius for 500Hours
+150 in Celsius for 100Hours
+170 in Celsius for 5Hours
+220 in Celsius for 30 Seconds
7) Material: PPS + Epoxy Resin / PPS
8) Standard Color: Saddlebrown + Black / Black
