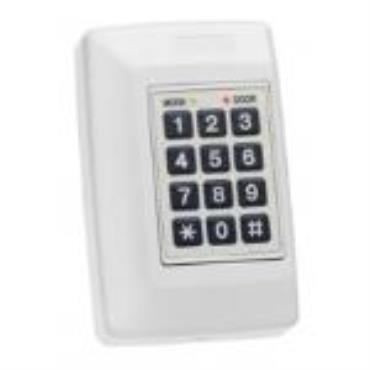

Each AC-115 supports a single door with power and control for 2 readers (IN/OUT), a 1.2A lock strike, door monitor & REX input, and has a built-in backup battery charger.

With its associated PC software (AS-115), the system works seamlessly in online and offline modes. A 2000 event offline FIFO(First IN first Out) history log is stored in non-volatile memory that can be uploaded to the PC.

8-controllers can be connected in a reliable and proven RS-485 network that interfaces with the PC software using on RS-232 to RS-485 converter.

Unique features include internal bell sounder enabling doorbell, chime, and alarm sounds.

* 2400 Users
* 2000 Event History
* Quick and easy to install, All-in-One
* 8 Programmable access time zones
* 24 Programmable holiday dates
* Three modes of operation: Normal, Bypass and Secure
* Supports two standard Wiegand 26-Bit readers (PIN only, PIN+PROX, or PROX)
* Internal power supply for readers, lock and inputs, with a charger for external battery backup
* Real-time clock with back-up battery lasts up to 10 years
* Cable-cut tamper detection function for readers and cover tamper detection for the main unit
* Bell, chime & alarm annunciator with audible tones
* Auxiliary relay output
* 3 selectable security modes and 3 programmable user levels
* A simple and intuitive user-friendly PC interface reduces complexity of managing access control For Microsoft Windows 98/Me, and XP/NT/2000/7
* AC-115 can work as an independent single-door PIN controller and does not require the PC
