AC-215 is suitable for applications with up to 5000 users across a modular 2046 doors, allowing maximum flexibility for securing a growing enterprise.

Each AC-215 Access Control Unit (ACU) supports two readers (In/Out) of various formats including standard Wiegand 26-bit. Each ACU can be set to work as a single or double door controller.

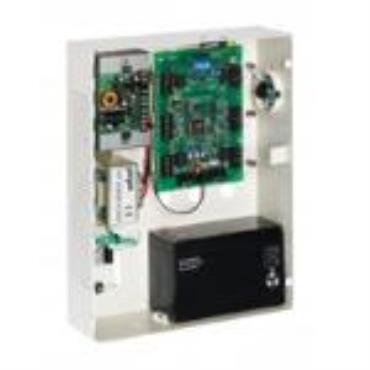

The AC-215 is ready for installation with a mountable & lockable metal enclosure integrated with transformer, power supply/charger, sounder and control board.

Using RS-232, Ethernet TCP/IP, or PSTN communication the AC-215 supports multiple local or remote site door sub-networks that can connect to the AS-525. The AxTraxNG? Client/Server PC software running on Microsoft? Windows? XP / 7 operating systems.

* Up to 5000 users with access rights for every panel, across 2046 modular doors in a system
* 5000 ‘First In First Out’ history event log, when offline
* Panel supports both 1-door (In/Out) and 2-door (In/Out, In/In or Out/Out) configurations
* Internal charger for external battery backup
* Supports PIN-only, PIN & PROX, or PROX-only readers
* Pre-installed enclosure components:
- AC-AC power transformer, power supply/charger unit
- Sounder unit
- Space for a 7 AH SLA backup battery
- Tamper switch
* Rugged, hinged metal enclosure that is lockable and vandal-resistant
* Real-time clock keeps time for up to 2 weeks without power. No batteries to replace
* 4-state supervised inputs (resistors included)
