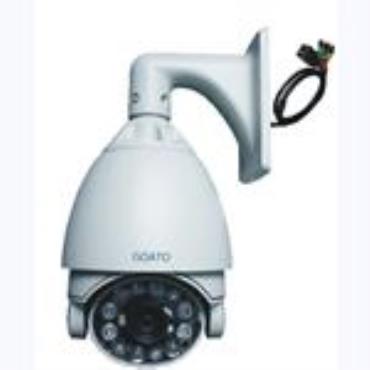

The IP Speed Dome provides variable pan/tilt speeds ranging from a fast patrol of 280° per second to a slow ramble of 0.5° per second with 0.225° pan accuracy for fast and accurate tracking ability. The 360° endless rotation and 0°~180° tilt travel make tracking the object passing directly beneath the IP Speed Dome. A maximum of 256 preset points can be programmed for precise location of target areas, and users can also define 8 sequences, 4 auto-pan modes and 4 cruise routes for the Dome to operate automatically.
The IP Speed Dome provides 4 alarm inputs and 1 alarm relay output, and the alarm management can be done through the network as well.
It adopts IR LED array technology to support long effective distances and even illumination. Its IR lamps use exposed covers for cooling and anti-aging in high temperature environments.
* IR distance 100-120 meters.
* 12 pieces COB led infrared light.
* IP66 standard waterproof.
* H.264/MJPEG video compression.
* 1.3 Megapixel 720P maximum resolution 25fps@1280*720
* Reach full frame rate 25fps, bitrate and frame rate are variable; FPS1-25,Bitrate 1Mpbs-8Mbps
* Support video/alarm/two-way audio, built-in WEB server, IE access.
* Delay Time Less than 200 Milliseconds (0.2 second) in LAN.
* Support DDNS in LAN/WAN access.
* Support two-way audio talkback, one-way audio broadcast.
* Support Dual stream, internet transmission and local storage independently.
* SupportPPPoE,DHCP,TCP/IP,HTTP,UDP,RTP/RTCP,RTSP,UPNP,SMTP,FTP,SIP,DDNS,DNS protocols.
* Support mobile remote monitoring(optional)
* Support WEB browser, remote config/update, replay, record
* Wifi optional，
Model AT-N9006W1-720P
Camera
Image Sensor 1/3” Ex-view 1.3 Mega Pixel CMOS
Optical Zoom Provide 18X
Digital Zoom 10x
Minimum Illumination 0.01 lux ; 0.001 lux (B/W)
Focal Length 4.7-84.6mm
Focus Mode Auto / Manual
White Balance Auto / Manual
Iris Control Auto / Manual
AGC Control Auto / Manual
Back Light Compensation On / Off
Video
Video Codec H.264, MPEG4, MJPEG
Frame Rate 30/25 fps (60/50 Hz) at 720P
Audio
Audio input/output 2-way audio, stereo jack,
Audio Codec G.711
Network
Interface 10/100 Base-T Ethernet, RJ-45 connector
Web Interface
Installation & Management Web-based configuration
Firmware Upgrade Remote upgrade through Web Browser
IP Device Utility included in the Software DVD
Access from Web Browser live view, video recording, PTZ control, preset setting, bandwidth control, image snapshot, digital I/O control, 2-way audio, Picture-in-Picture (PIP), Picture‐and‐Picture (PAP), Wide Angle Lens Dewarping (WALD)
Language Czech / Danish / English / French / German / Hebrew / Hungarian / Italian / Japanese / Polish / Portuguese / Russian / Serbian / Simplified Chinese / Spanish / Traditional Chinese
Operation
Pan Travel 360° endless
Tilt Travel 0° ~ 180°
Manual Speed 0.5° ~ 120°/s
Preset 256
Preset Accuracy 0.225°
Preset Speed 0.5° ~ 280°/s
Sequence 8
Auto Pan 4
Cruise 4
Proportional Pan & Tilt On / Off (Pan and tilt speed proportional to zoom ratio)
Resume afterPower Loss Yes
Home Function Preset, Sequence, Auto pan, Cruise
Auto Flip Digital / Mechanical / Off
Digital Slow Shutter On / Off
Motion Detection On / Off
Wide Dynamic Range On / Off
Day/Night: Mechanical IR Cut Filter On / Off
Image Inverse On / Off
Image Freeze On / Off
Sensor Input 4
Alarm Output 1
Alarm Reaction Preset, Sequence, Auto pan, Cruise
General
Operating Temperature -45 °C ~ 50 °C / -49 °F ~ 122 °F
Waterproof Standard IP66
Dimensions ? 172 x 302.5 mm; 6.7 x 11.9 in
? 190 x 302.5 mm; 7.5x 11.9 in (with sunshield)
Weight 1.6 kg / 3.5 lbs
Power Source 12V DC ± 10%, 5A
Max. Power Consumption 65 W (with Heater)
Fan-On Threshold On: 35°C / 95°F
Heater On: -7°C / 19.4°F ; Off: 3°C / 37.4°F
Regulatory CE, FCC, RoHS compliant
Applications
Network Storage AT-NVR, AT-System, AT-Backup Center, AT-Recording Server
Mobile Phone support AT-AView for Android Smartphone, for iPad, for iPhone and iPod Touch, AT-GView for Windows PDA.
Live Viewing IE , AT-MultiView
CMS Server support AT-Control Center, AT-Center V2, AT-VSM
