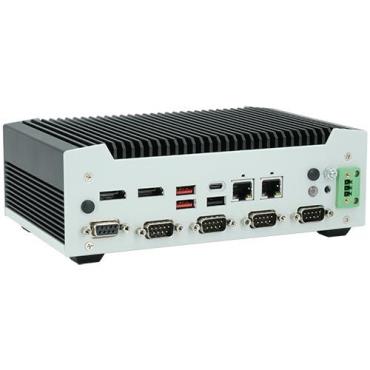

Kontron KBox E-430-AML/ADN is a rugged, high-performance computing platform designed to monitor and control remote facilities, equipments and / or devices for a variety of applications.

- Intel® Atom® x7000RE Series Processors (Amston Lake)

- Intel® Core™ i3 N-Series & Intel® N-Series Processors (Alder Lake N)

- 1x DDR5 SO-DIMM memory socket

- 2x 2.5 GbE LAN with TSN for real-time Ethernet

- 3x DP (2x full DP, 1x USB-C) for triple display support

- 3x USB 3.2 Gen 2 / Gen 1 (2x Type A, 1x Type C), 1x USB 2.0 for USB device connection

- 4x RS232/422/485 for serial device connection

- 1x 8-bit DIO (4x DI + 4x DO) for device / signal control

- 1x 2.5" SATA 3.0 HDD / SSD support

- 1x M.2 Key B for SSD, WWAN expansion

- 1x M.2 Key E for WLAN and Bluetooth expansion

- 1x M.2 Key M for SSD expansion

- dTPM 2.0 support for securer cryptographic operations

- Passive cooling design without fans nor vents

- Wide voltage input range: DC 9 V ~ 36 V

- Extended temperature model available: -40 °C ~ 65 °C

- Flexible mounting options

More information, refer to https://www.kontron.com/en/products/kbox-e-430-aml-adn/p186545 or contact us at SalesAsia@kontron.com.
