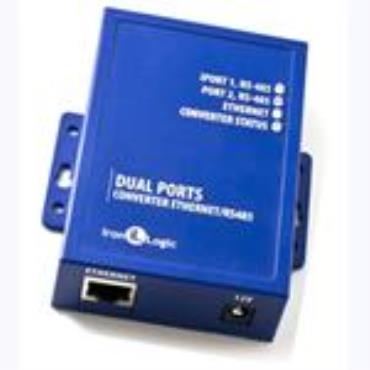

Model: Z-397 (IP)

Listing Description:

- Access to devices on the RS-485 (422) via Ethernet

- Two RS-485 ports (one galvanically separated up to 1000 volts)

- Work on the TCP/IP

- Modes of a connection - "client" and/or "server"

- Support for NVT (Network Virtual Terminal)

- Availability of drivers for most operating systems (virtual COM port)

- Working with software focused on the usual COM port

- Configuring a USB port (UMS), as well as remotely via TELNET

- Firmware update

- Mechanical locking configuration and firmware upgrade

- Monitoring the integrity of the package RS485 transmission

- Display mode

Specifications:

Ethernet:

- Interface Ethernet RJ45 (10BASE-T, Ethernet II and IEEE 802.3)

- Protocols IP, ARP, TCP, TELNET, ICMP, UDP, DHCP

RS485:

- The number of lines RS-485/RS-422 - 2 / 1

- Speed - up to 115,200 bits / sec

- Galvanic isolation of the line 1 - 1 kV

- Galvanic isolation of the line 2 - no

USB:

- Connector - USB Type B

- Version - USB 2.0

- Mode - Full-Speed

- Class - Mass-storage device

And nutrition:

- Power supply - 8-18V DC or 7-14V AC

- Current consumption - 100 mA (at 12V DC)

- Storage Temperature - -40 ° C ... +125 ° C

- Operating temperature - 0 ° C ... + 70 ° C

- Humidity (without condensation) - 5% ... 95%

- Housing Material - ABS plastic

- Weight - 100 grams

- Size (mm) – 100x85x30

Application:

Z-397 (IP) is designed for communication devices connected to the lines of RS485 (422), with a remote computer via a local area network protocol TCP/IP.
