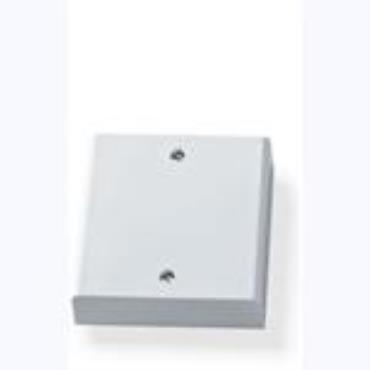

Model: CP-Z

Listing Description:

- Protection corps from moisture and dust,

- Easy installation and connection

- Integration into the network and autonomous system

- low price

Specifications:

- Operating frequency: 125 Khz

- Reading cards & keyfobs standard: EM Marine

- Reading range: 6-8 cm

- Power supply: 8 - 15 V DC

- Current consumption: 20mA (max)

- Audible indication: the buzzer

- Sound Control: On / Off.

- Operating temperature: -40 ° C to +50 ° C

- The maximum length of a line from reader to controller> 15m

- Body Material: ABS plastic

- Colour: white

- Output interface: Dallas Touch Memory (emulation DS1990A)

- Data transfer rate: 400bit-4K bit per second

- Size (mm): 65x65x18.

Application:

Designed for the "hidden" settings both inside and from outside. Product specifications and design of the case allow for solid performance through the plaster or drywall.
