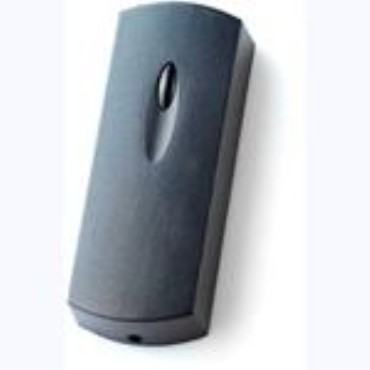

Model: MATRIX-III (EH)

Listing Description:

- Simultaneously supports two protocols (EM Marine, HID)

- The elegant case

- for concealed installation

- Protection corps from moisture and dust,

- Easy installation and connection

- Integration into the network and autonomous system

Specifications:

- Operating frequency: 125 Khz

- Reading cards & keyfobs standard: HID ProxCard II, EM Marine

- Reading range: 6-14 cm

- Power supply: 8 - 18 V DC

- Current consumption: 50mA (max)

- Sound / light indication: buzzer, bi-color LED

- External Control LED and sound

- Operating temperature (indoor): -40 ° C to +50 ° C

- Body Material: ABS plastic

- Colour: dark gray metallic, bright pearl

- Output Interface: Wiegand 26, Dallas Touch Memory (emulation DS1990A)

- The maximum length of a line from reader to controller:

- Using the DS1990A, no more 15m

- Using the Wiegand, not more than 100m

- Data transfer rate: 400bit-4K bit per second

- Size (mm): 115x45x22

Application:

Designed to work with network and stand-alone security systems and access control
