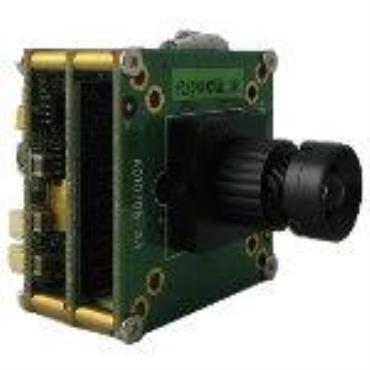

H.264 2 MegaPixel IP Module
Provideo Co., Ltd.
Region: Taiwan
Update: 2011/03/22
INQUIRY
Key Specifications
Features
* 2.0" Micron DigitalClarity CMOS
* H.264 / MPEG4 / MJPEG video compression.
* Up to UXGA resolution at 15fps
* Supported HD 720(1280x 720) resolution at real time.
* Micro SD & USB Flash-drive event image capture supported
* Two way audio supported
Main General Features
* System: SoC, Embedded ARM-Linux
* Resolution: 1600x1200@15fps, 1280x720 @ 30fps
* Support 2.0 Mega Pixel CMOS sensor module
* Support 50/60 Hz frequency
* Compression: H.264 / MJPEG for video
* Adjustable video data rate
* Adjustable audio data rate
* Synchronized video + audio compression
* Factory setting reset. Protocol Supported: DHCP, PPPoE, Dynamic DNS, TCP/IP, UDP, SMTP, UPnP, HTTP,RTSP, DNS client
* Support HTTP Tunneling (RTSP over HTTP)
* Watch Dog Timer function
* IE Browsing supported (ActiveX™)
* Support NTP time setting
* Message in e-mail
* Provide RTC (Real Time Clock) function
* Hardware OSD of time display
* USB/SD Card support Alarm Record
* USB/SD Card support Manual Record
* USB/SD Card support Record files Recycle Function
* Support Day & Night function |
General Features
* HTTP port setting, Audio can be disabled (IE)
* Snapshot, Motion Detect Recording (IE)
* Auto Recovery when disconnected.(IE)
* Programmable IP / Subnet / Gateway (IE)
* Motion Detection Sensitivity: 1~9 (IE)
* Event: Motion Detect, Video Loss(IE)
* Action: E-mail and ftp alarm out.(IE)
* Firmware upgrade over Ethernet (IE)
* Video quality setting: Contrast, Brightness, Saturation, Hue (IE)
* Windows XP/Vista required (DirectX™ 9.0C or Higher)
* Support Windows Internet Explorer 6.0 / 7.0 / 8.0
* Language: English, Traditional Chinese
* Support IPCAM alarm trigger (Motion/Digital I/O, Video Loss, Disk Full) by MSN send message. |
Software Features
* 64 CH Hybrid Software
* CGI, OCX/DLL SDK
* NVR SDK API Code
|
