CMS software Integration Features:

. Click on event to retrieve playback recorded video.

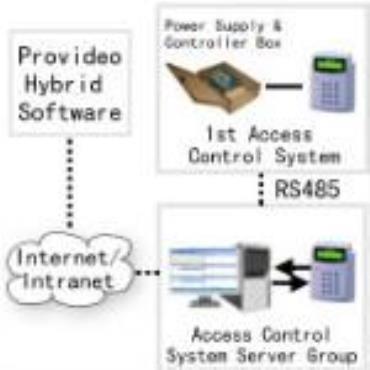

NVR software Integration Features:

. Badge information and live video comparison easily identity verification.

. Click on event to retrieve playback recorded video.

. Video can be provided from various sources: PROVIDEO

IPCAM & Video Server Series,PC DVR Card Series

■Access Control System Main Feature

. Support Proximity type reader, reader range up to 10cm

. 3000 card holders / 3500 transactions

. Anti-passback

. Access mode available

. Alarm function for door left open

. Force entry alarm

. Temporarily suspend all function

. Password time zone restraint

. Ten access time zones restraint

. Twelve months holiday restraint

. Eight groups of programmable personal password time zone

. Password time zone programmable if password access of card data selected, for example :

use card data

in regular time, card with password in holiday.

. Card number shown when access succeeds.

. The acting period of electric strike, alarm function, anti-duress and door not closed alarm can be programmable for 1 to 255 seconds

■SD-100RA Hardware Specification

. Serial Port: TCP/IP, RS232, RS485

. Reader Module Type: EM, HID.MIFARE, TI option

. Reader Type: Proximity

. Reader Range: Up to 10cm with EM compatible card 125KHz

. Display: 16 characters x 2 lines LCC with backlight

. Battery Capacity: Timer IC and data maintained up to two months after power failure

. Memory Buffer: 3000 cadholders / 3500 transactions

. Keypad : 12 Key (0-9, X, #)

. Indicator: Bi-color LED ( Green / Red)

. Case Material: ABS(UL 94-0)

. Dimension: 150(H) x 110(W) x45(D)mm

. Weight: 380g

. Working Voltage: DC 10-15 volt

. Power Consumption: 300mA Max@12VDC

. Operating Temperature: 0°~50°C

. Humidity: 5%-95% (no condensation)

. Approved: IEC 529 IP34
