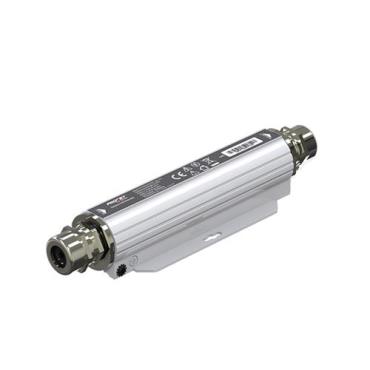

PT-PEX-01G-OT is a single-port PoE extender designed for exterior complex backhaul and networking applications with an IP 67 rated Aluminum alloy shell.It delivers 55Vdc(typical), 1.1A power from PoE Injector/switch to remote PDs over full 4 pairs with 6KV (10/700us) surge protection. It supports 10/100/1000Mbps of date speed. It works with 60W(Max) PoE PDs，such as wireless APs, base stations, network cameras and other high power Ethernet terminals.

It works with input voltage of 44-57Vdc from PoE injector/switch and operates under -40℃ to +65℃. On the input side, it connects to PoE injector or PoE switch, on the output side, it connects to PDs. The total effective distance from PoE injector to PD is 200 meters over CAT5e/CAT6 cables without local power. It can work longer to 500 meters with adding 4 PoE extenders. It is easy to install with 2 mounting holes and is specially suitable for working in complex power situations.

It supports terminal equipments with IEEE802.3af/at,PoE++ standard. There will be power loss after adding two or more extenders, but the output power can be up to 60W for your PD with one extender.

Key Features

*Expand 100M with one PoE extender

*Lighting Protection

*IP67 outdoor use

*Wide temperature at -40℃ to 65℃ even up to 85℃

*No local power is needed

*Gigabit data rates

Part Number:PT-PEX-01G-OT

Ports condition PoE In Port*1, PoE Out Port*1

Regulatory Compliance

RoHS Compliance

WEEE Compliance

Pass Through Data Rates 10/100/1000 Mbps

Input & Output Pin Assignment and Polarity:

4/5 (+), 7/8 (–) and 3/6(+),1/2(-)

Operating Voltage :44-57Vdc, (Max 60Vdc)

Maximum Operating DC Current :1.1A for 4 pairs,

Maximum 60W

Working Environment:Operating Temperature: -40℃ to 65℃

Operating Humidity: 20% to 80%, non-condensation

Storage Temperature: -40℃ to 85℃

Storage Humidity: 10% to 95%, non-condensation

Operating Altitude: up to 5000meters

PoE Surge Protection:Protected Line: 1,2,3,4,5,6,7,8

Common Mode Protection Level(10/700us): 6KV

Differential Mode Protection Level(10/700us): 1.5KV

Clamping Voltage(Line to GND): 300V

Clamping Voltage(Line to Line): 10V

Insertion Loss @10MHz/100MHz: -1db

Return Loss @10MHz/100MHz: -20db

Response Time: 5ns

Mechanical Characteristics

Case: Aluminium alloy

Color: White

Mounting: Wall-mounted

IP Rated: IP67

Connectors: Shielded RJ-45

Size: 209mm X 53mm X 37.5mm

Weight: 410g（0.9lb）

Warranty:2 year
