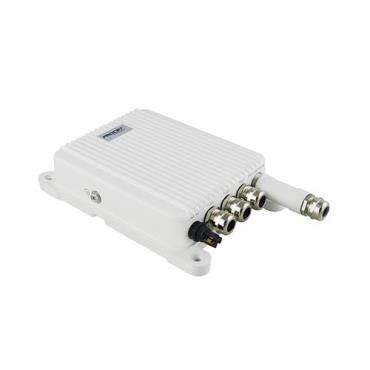

*1 LAN+3 PoE ports PoE Switch

*Wide temperature solutions

*Lighting Protection

Part Number:PT-POS401GR-OT

Ports condition LAN Port*1, AC Input Port*1, PoE Output Port*3,Earth Port*1

Regulatory Compliance

IEEE802.3 af/at

RoHS Compliance

WEEE Compliance

Pass Through Data Rates 10/100/1000 Mbps

Output Pin Assignment and Polarity:

3/6 (+), 1/2 (–)

Output Power Voltage: 55Vdc

Output Current: 550mA (Per Port)

User Port Power: 30W Guaranteen(Per Port)

Input AC Input Voltage: 100 to 240 Vac

AC Input Current: 2A

Frequency: 47 to 63Hz (50/60Hz Typ.)

Working Environment Operating Temperature: -40℃ to 65℃

Operating Humidity: 20% to 80%, non-condensation

Storage Temperature: -40℃ to 85℃

Storage Humidity: 10% to 90%, non-condensation

Operating Altitude: up to 5000meters

PoE Surge Protection:Protected line: 1,2,3,4,5,6,7,8

Common mode surge protection(10/700us): 6KV

Differential mode surge protection (10/700us): 1.5KV

AC Surge Protection:

Line-Earth 1.2/50us (8/20us): 6KV

Line-Line 1.2/50us (8/20us): 4KV

Mechanical Characteristics:

Case: Metal

Color: White

Mounting: Wall- mounted/ Pole-mounted

IP Rated: IP66

Connectors: Shielded RJ-45*4

Size: 176mmX 269mmX 65mm

Weight: 2.1kg（4.63lb）

Warranty 2 year
