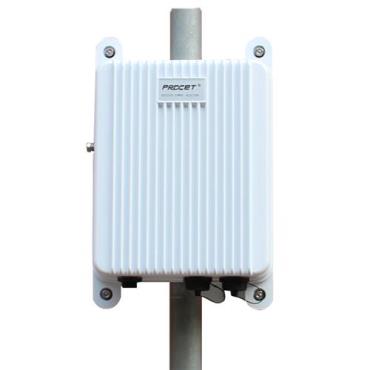

PT-PSE108GR-OT is a single port midspan Injector with 2 Pair PoE up to 30 watts of power at 55 VDC at 0.55 amp.Designed for the PoE+ powered 30W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates.
Fully comply with IEEE802.3at and remains compatible with any IEEE802.3af compliant devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.Enclosed in an IP66, IEC60529, NEMA 250 fire retardant metal case, designed for outdoor installation with Pole-mounted.
It operates with a wide input voltage of 100-240Vac, 50 or 60 Hz. The effective distance limitation of 100 meters over Cat5e/Cat6 cables , It is easy to install with installation kit PT-POT-MBK, no need to open equipment.can be extended with the PT-PEX-01G-OT(Outdoor or Indoor PoE Extender)
*Data speed: 10/100/1000Mbps(Gigabit)
*Input: 100-240VAC 1.5A
*Output: 24Vdc 1.0A , 24W
*PoE&AC port surge protection: 6kv
*Wide Temperature: -40℃ to 65℃
*IP66 outdoor use
Part Number:PT-PSE108GR-OT
Ports condition:LAN Port*1, AC Input Port*1, PoE Output
Port*1
Regulatory Compliance:
IEEE802.3at
RoHS Compliance
WEEE Compliance
Pass Through:Data Rates 10/100/1000 Mbps
Output Pin Assignment and Polarity:4/5 (+), 7/8 (–)
Output Power Voltage: 55Vdc
User Port Power: 30W Guaranteen
Input:Input Voltage: 100-240Vac
Frequency: 50/60Hz Typ
Working Environment:Operating Temperature: -40℃ to 65℃
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -40℃ to 85℃
Storage Humidity: 10% to 95%, non-condensation
Operating Altitude: up to 5000meters
PoE Surge Protection:Protected line: 1,2,3,4,5,6,7,8
Common mode surge protection(10/700us): 6KV
Differential mode surge protection (10/700us): 1.5KV
AC Surge Protection Line-Earth 1.2/50us (8/20us): 6KV
Line-Line 1.2/50us (8/20us):4KV
Mechanical Characteristics
Case: Metal Color: White
Mounting: Pole-mounted
IP Rated: IP66
Connectors: Shielded RJ-45*2
Size: 176X 269 X 65mm
Weight: 1.8kg(3.97lb)
LED Indicator Power Indicator : Green
PoE Load Indicator : Yellow
Warranty:2 year
Safety Approvals:CE,FCC
