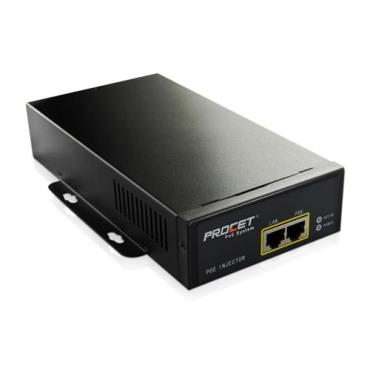

PT-PSE109GBRO is a single port midspan Injector with 4 Pair PoE up to 95 watts of power at 55 Vdc at 1.75 Amp.

Designed for the PoE++ powered 95W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates. Fully comply with IEEE802.3bt and remains compatible with any IEEE802.3af/at compliant devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.

Enclosed in an IP20 high-impact metal case, designed for indoor use but can work outdoor by covered with waterproof case. It works with a wide input voltage of 100-240VAC with 6KV surge protection, 50 or 60 Hz and operates under -40℃ to +65℃. The effective distance limitation is 100 meters over Cat5e/Cat6 cables.

Key Features：

*Industrial PoE can be outdoor use by covered with waterproof case

*Extend temperature from -40℃ to 65℃

*Lighting Protection at PoE port

*Gigabit data rates

*IP20 high-impact metal enclosure

*AC power cord with optional US or EU plug or other standard plug

Diagnostic LEDs

Part Number：PT-PSE109GBRO

Ports condition LAN Port*1, AC Input Port*1, PoE Output Port*1

Regulatory Compliance：

IEEE802.3bt

RoHS Compliance

WEEE Compliance

Pass Through Data Rates 10/100/1000 Mbps

Output Pin Assignment and Polarity:

4/5(+), 7/8(-) and 3/6(+),1/2(-)

Output Power Voltage: 55Vdc

User Port Power: 95W Guaranteen

Input AC Input Voltage:90 to 264Vac(100 to 240Vac Rated)

AC Input Current: 2.0A

Frequency: 47 to 63Hz (50/60Hz Typ.)

Working Environment：Operating Temperature: -40℃ to 65℃

Operating Humidity: 20% to 80%, non-condensation

Storage Temperature: -40℃ to 85℃

Storage Humidity: 10% to 90%, non-condensation

Operating Altitude: up to 5000meters

PoE Surge Protection：Protected line: 1,2,3,4,5,6,7,8

Common mode surge protection(10/700us): 6KV

Differential mode surge protection (10/700us): 1.5KV

AC Surge Protection：Line-Earth 1.2/50us (8/20us): 2KV

Line-Line 1.2/50us (8/20us): 1KV

Mechanical Characteristics：Case: Metal

Color: Black

Mounting:Wall-mounted

IP Rated: IP20

Connectors: Shielded RJ-45*2

Size: 214 X 134 X 41mm

Weight: 1070g（2.36lb）

LED Indicator：Power Indicator: Green

PoE Load Indicator: Green

Warranty：2 year

Safety Approvals：cUL/UL, CE, CB, FCC, RCM, NOM
