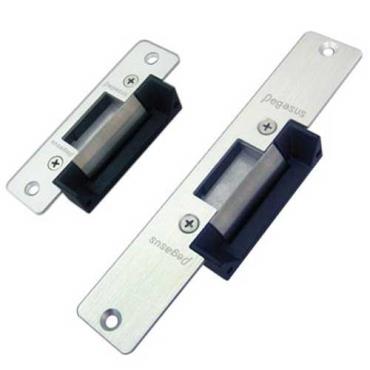

•The PGS-502 is a ANSI size electric door strike.

•With door monitoring switch.(PGS-502SW Series)

•Fail-Safe / Secure Adjustable

•Could be continuously energized.

•For heavy duty door.

•Holding force: 1200Kg

•Endurance:1,000,000 cycles.

Specifications

Lock size (mm)

PGS-502: 124(L)x32(W)x32(H)

PGS-502L: 202(L)x36(W)x32(H)

Nominal voltage: DC 12V~DC 24V

Standby current: 270mA~140mA

Working current: 0mA

Temp. range: -20 oC～70oC

Power consumption: 3.24W~3.36W

Depth of lock slot: 15mm

Material

Front plate: Aluminum / Stainless steel

Lock body: Zinc alloy

Latches: Stainless steel

Operation

Pair with latch bolt mechanical lock.(MK-738)

Applications

For aluminum steel or wooden door, brass door

We reserve the right to change the specification without prior notice or obligation!
