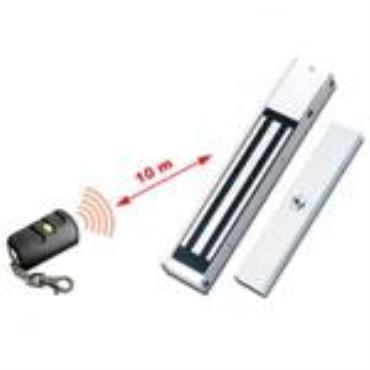

(For reference only, sensing distance depends on on-site environment)

•With learning mode button for memory up to 40 pieces transmitter ID’s.

•Compact structure without additional installation of transmitter receiver and wiring.

Specifications

•Magnet size (mm):250(L) x 47(W) x 26(D)

•Armature size (mm):185x38x11

•Holding force: 600Lbs / 270kgs

•Voltage/Current:12V/500mA, 24V/250mA

•Relay dry contact rating:500mA, 24VDC/AC

•Unit weight (Approx.): 2.5kg

•Door monitoring:YES

•Timer (LED):YES

We reserve the right to change the specification without notice or obligation!
