．Lock integrated one, simplifying installation procedure.

．The frame of lock body consists of aluminum alloy, strong crashworthiness.

．Compact size, installation as required (pulling type, sliding type).

．Suitable for drawers, lockers, mailbox, postbox and similar devices to be used as management.

Specifications:

•Electric magnet size : 70 x 38 x 25 mm / 2.76 x 1.5 x 0.96 inch

•Armature size : 60 x 32 x 8 mm / 2.36 x 1.26 x 0.31 inch

•Holding force : 100Lbs~145Lbs / 45Kgs~66Kgs

•Voltage/Current : 12VDC(60mA)~24VDC(110mA)±5%

•Material: Electric magnet(Aluminum alloy) / Armature(Low-carbon steel)

Ordering information:

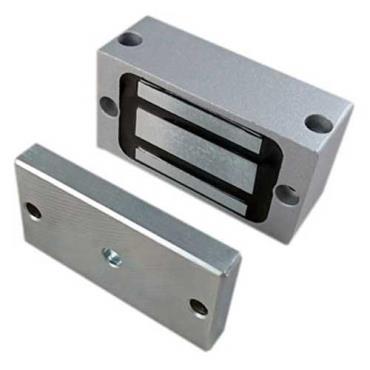

PML-080A : Mini electromagnetic lock, silver

PML-080AB: Mini electromagnetic lock, black

We reserve the right to change the specification without prior notice or obligation!
