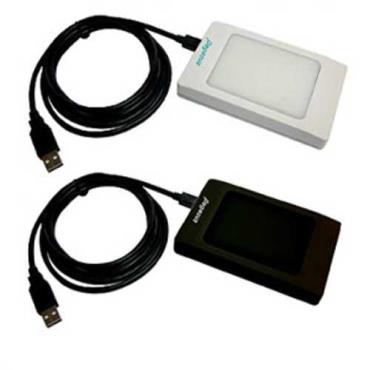

This product is the RFID card reader with USB interface. It can be used to read either 125KHz EM or 13.56MHz Mifare card or both EM & Mifare. It can provide easy ID filing by USB keyboard emulator without any driver (plug & play) and no request of external power supply. So it is especially applicable to various software applications which need to input card number instead of editing it manually.

Features:

•Registration ID card for access control system.

•System login / logout application.

•Member system.

•POS.(Inventory management, logistics system,

food and drinks industry and so on.)

•Support Android 4.0 system.

Specifications:

•Dimensions (L x W x H): 118 x 75 x 17 mm / 4.6 x 3 x 0.7 inch

•Mounting: Desktop

•Material: ABS

•Power supply: By USB

•Operation temperature / Humidity: -10 ℃ ~ 75 ℃ ，10%~90% RH, Non condensation

•Frequency of Operation: 125KHz EM / 13.56MHz Mifare / EM+Mifare

•Output Interface: USB 2.0

•Card number type: Decimal / Hexadecimal, 8 digits / 10 digits

※Selected the card number type by jumper. (Optional)

•Card type: 125KHz EM (EM4001 / EM4002 / EM4200)

13.56MHz Mifare (ISO 14443A / 14443B / 15693)

How to order:

PUA-310V-0NU1D04 :

USB interface, 125KHz EM type, Decimal, 10 digits, 34 bits

PUA-310V-0NM0U1D04 :

USB interface, 125KHz EM & 13.56MHz Mifare UID type, Decimal, 10 digits, 34 bits

PUA-310V-0NM0U1D01B :

USB interface, 125KHz EM & 13.56MHz Mifare UID type, Decimal, 8 digits, 26 bits, black color

PUA-310V-0M0U1D03 :

USB interface, 13.56MHz Mifare UID type, Decimal, 8 digits, 34 bits

PUA-310V-0M0U1D03B :

USB interface, 13.56MHz Mifare UID type, Decimal, 8 digits, 34 bits, black color

PUA-310V-0M0U1D04 :

USB interface, 13.56MHz Mifare UID type, Decimal, 10 digits

PUA-310V-0M0U1D04B :

USB interface, 13.56MHz Mifare UID type, Decimal, 10 digits, black color

PUA-310V-0M0U1H01B :

USB interface, 13.56MHz Mifare UID type, Hexadecimal, 8 digits, black color

PUA-310V-0M0U1H02 :

USB interface, 13.56MHz Mifare UID type, Hexadecimal, 10 digits

Mifare is a registered trademark of NXP B.V.

We reserve the right to change the specification without prior notice or obligation!
