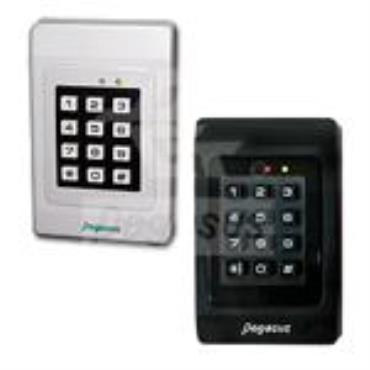

•ABS case with plastic keypad, compact and low profile.

•With tamper switch and one loop sensor input to trigger alarm when case is tampered or loop is intruded.

•Non-volatile memory for 10-100 years data retention without any battery backup.

•DC 12V operated therefore battery operation is possible when AC power is interrupted.

•Intelligent programmable functions through keypad by LED''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''s and audible beep''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''s indication.

•150 independent codes from 5 to 8 digits, up to 99,999,999 combinations.

•Programmable door release time, alarm time from 1 to 99 period through keypad.

Specifications

•Dimensions: 118(L) x 75(W) x 16(H)mm

•Weight: 250g ± 5%

•Operation temperature: 0°C ~ 50°C

•Humidity: 20%~90% RH, Non condensation

•Power supply: 12V DC 18.2~20.2mA. standby, 49.7~54.9mA on relay operation

•Monitor inputs: Door contact, Exit push button, Case tamper

•Passcode: Programmable from 5 to 8 digits

We reserve the right to change the specification without prior notice or obligation!
