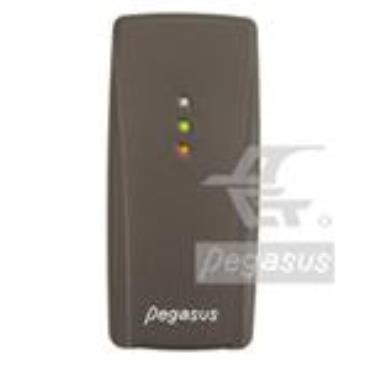

PC-110 is a compact size of Mifare access controller, which can serve as a stand alone contactless access controller with ability of learning maximum 64 cards as legal cards for access or arm/disarming the security system or opening the doors or gate.

Features

1. Low cost with effective performance.

2. Compact size for designing in all kinds of products

3. 64 legal cards can be registered thru simple learning.

4. Setting for Access/ Security/ Open-door functions

5. No any computer is need.

6. With dry contact. (form A relay).

Application field

1.Low cost access controller

2.Arm / Disarm for security system.

3.Door access paired with intercom.

4.Coffer

5.Any access control applications by Mifare card.

Specifications

Dimensions (Lx WxH)mm: 94 x 43 x 15

Net weight: 55.5g ±5%

Supported Tag-ICs: Easy Card, Mifare S50 / S70 and compatible card

Reading distance: 5~7cm

Frequency / Modulation: 13.56 MHz

Power requirement: 6~12 VDC/80mA

How to order

PIMF-C07 Mifare access control module board with antenna

PXMF-C07 Mifare access control module board without antenna

R-17-PP110M2/Coil Antenna for PXMF-C07

PC-110-0/M0 Mifare access controller(with antenna)

PC-110-1/M0 Mifare access controller, waterproof(with antenna)

Mifare is a registered trademark of NXP B.V.

We reserve the right to change the specification without notice or obligation!
