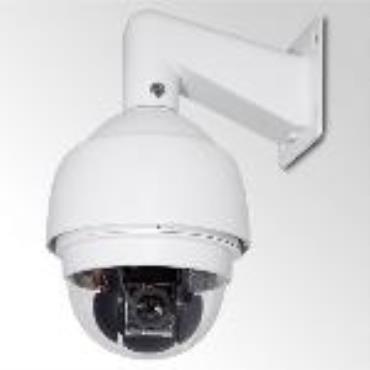

The PLANET ICA-H612 is the outdoor speed dome Internet camera offering the next generation H.264 video compression. It is a prefect and effective surveillance solution for the bandwidth limited networks. The ICA-H612 features a 12x12 zooming (12x optical zoom, 12x digital zoom) with auto focus and auto iris. It offers fast, accurate and continuous 360 panning operations. The unparalleled surveillance functions of the ICA-H612 including 256 camera presets, 8 camera cruise configurations, and the motion detection function make it able to satisfy the demanding surveillance and remote monitoring applications.

The ICA-H612 provides Multi-Profile function which can generate H.264 and M-JPEG video streaming simultaneously. Moreover, the resolution can be different from one user to another. This state-of-the-art design is considerable to fit in various network environments such as traffic centers, shopping malls, railway stations, warehouses, airports, and production facilities.

The ICA-H612 supports Store-to-NAS function so the video files can be saved in a NAS directly which helps to release more PC resource and keep monitoring the environment with motion detection at 7/24. It provides 2-Way audio surveillance so that the administrator can speak to anyone at ICA-H612 remote site with a speaker connected. The ICA-H612 can also keep working properly under bad weather conditions in outdoors with its IP-66 protection cover.

Key Features

? Multi-Profile encoder supports H.264 and M-JPEG video compression simultaneously

? D1 / CIF Real-time resolutions (30fps)

? 360 degree continuous PAN, Tilt (0 ~ 180 degree) and 12x12 zooming (12X optical, 12X

　digital) adjustment

? High resolution quality pictures for day and night surveillance

? Built-in IR Cut Filter (ICR)

? 3D de-interlaced video image

? Wide Dynamic Range (WDR)

? 2D/3D Noise Reduction

? Store-to-NAS function to save video files without operating software

? 3GPP for 3G mobile remote applications, iPhone viewer support

? Supporting TCP/IP networking, SMTP e-mail and HTTP public network standards, the

　ICA-H612 can be applied and utilized to a mixed IP network environment

? Easy configuration: network administrators can efficiently configure and manage the

　ICA-H612 via Windows-Based utility or web interface

? DDNS and FTP uploading supports more alternatives in surveillance network

? Motion detection feature can monitor any suspicious movement in specific area

? IP-66 outdoor classification with heater and fan for rigorous environment
