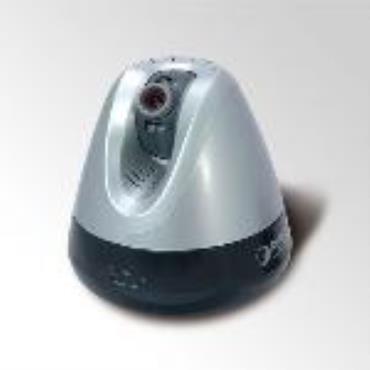

The PLANET ICA-HM230 with built-in high performance 1.3Mega-Pixel CMOS sensor delivers high quality image at maximum 1280x1024 resolution. Integrated the next generation video compression technology – H.264, the ICA-HM230 can compress the video size to smaller one for users to transfer the Mega-Pixel image on Internet easily. Multi-profile stands for video stream simultaneously. The ICA-HM230 can generate H.264 / MPEG-4 and M-JPEG streaming to different users at the same time. It allows up to 20 users to access the ICA-HM230 simultaneously. With this state-of-the-art design, the ICA-HM230 is considerable to fit in various network environments.

High-speed motorized structure offers a wide pan range of 355 degrees and tilt range of 100 degrees to be controlled over TCP/IP networks. 180 degree/sec pan speed and 100 degree/sec tilt speed drive the camera move to the preset point faster than normal-speed P/T IP cameras.

The ICA-HM230 features zero-lux illumination. 4 white LEDs built around the lens bring the clearest vision at night. The ICA-HM230 offers color pictures both in the day and night with built-in CMOS sensor supporting up to 10 meters. It also uses new High-Light LED to provide greater performance in the dark and longer life of LED.

Supports Store-to-NAS function, the ICA-HM230 can work alone and save the video file to a NAS directly, which can save the PC resource and keep monitoring the environment with motion detection at 7/24. The ICA-HM230 takes surveillance using 2-Way audio. The administrator can speak to anyone at ICA-HM230 remote site with a speaker connected. Compliant with IEEE 802.3af PoE interface, the ICA-HM230 can be located in places where there are no power outlets.

The ICA-HM230 can be managed by PLANET Cam Viewer Plus, the professional management software for multi-camera video surveillance application, to provide monitoring, recording and event management functions. The Cam Viewer Plus enables you to setup a comprehensive and effective surveillance system quickly and easily. With the ICA-HM230 managed by the Cam Viewer Plus, it provides an enhanced professional security environment to protect your property and life.

Key Features

? 1.3Mega-Pixel CMOS sensor built-in

? Offers pan range of 355 degrees and tilt range of 100 degrees to be controlled over network

? 2-Way audio with built-in microphone and can be connected to speaker

? 4 white-light LEDs supporting visible distance up to 10 meter at night

? Multi-profile encoder supports H.264 / MPEG-4 and M-JPEG video compression simultaneously

? 3GPP for 3G mobile remote applications

? Plug-N-Watch that simplifies system integration in existing network environment

? Store-to-NAS function to save video files without operating software

? Easy configuration and management via Windows-based utility or web interface

? DDNS, PPPoE and FTP uploading supports more alternatives in surveillance network

? Motion Detection feature can monitor any suspicious movement in specific area

? Compliant with IEEE 802.3af PoE interface

? Cam Viewer Plus - Central management software supported
