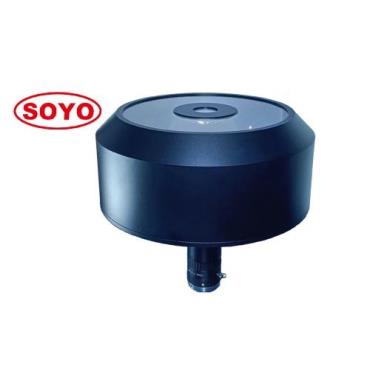

SOD23100 Catadioptric 360° Degree Outer View Outwall Surface Imaging Sensor ( Between 1.1"~1/2" ) Object Out Diameter 30~110mm & Matched Height 27~12.5mm Working Distance from 43~8mm ( 360度外壁检测镜头支持最大110mm外径 ）

Download 下载 ==> http://www.soyocctv.com/products_detail.asp?id=1636&cataid=224&Cataupper=119&list=0

* Outer view surface imaging 外壁360度成像

* Varity of format / sensor size 1.1", 1", 2/3", 1/1.8" >1/2” 大于1/2靶面均可使用

* High resolution megapixel 高像素

* Large Diagram Object 30~110mm Out Diameter 可测大直径被测物30~110mm外径

* Matched object height from 27~12.5mm

* Application : pharmacy, bottle, tube etc. 用于医药类、瓶装类，管类、圆柱类外壁

* Originally made in China 100% 纯中国制造

Model 型号 SOD23110

Sensor 靶面 >1/2" ( 1/2" ~ 1.1" )

Mount 接口 C

W.D 物距 8-43mm

Aperture 光圈 F5.0~12

Diameter(mm) 外径 Height (mm) 高度 WD(mm)工作距 FNo.光圈值

30 27 43 12

40 36.7 26.5 10

50 46.6 10 10

60 40 10 8

70 33.1 10 6

80 26.5 10 6

90 20 8 5

100 13 8 5

110 12.5 8 5
